The REMA BLACKLINE hand chain hoist is suitable for theater purposes where safety, ergonomics and a low operating force are paramount. The body and hooks are coloured black to limit visibility in sensitive dark environments.


Properties

  • Low operating effort at full load.
  • Increased operational safety due to double pawl system.
  • Load pressure brake with astbestos free friction discs.
  • Load chain wheel is made of wear-resistant alloy steel.
  • Top and bottom hook have safety latches.
  • In case of overload, the hooks will gradually bend and do not suddenly break off.
  • Galvanized load chain (Grade 8).
  • Galvanized hand chain.

Standard delivery

  • Lifting height 10 or 15 meters

Option

  • Other lifting heights on request.
  • chain bucket for load chain up to 10 meters lifting height.

Norm:

  • EN12100-1/2, EN13157, EN818-7
  • Marking: According to standard, CE-marked
  • Standard: EN 13157, EN 818-7
Select a row from the table below, then click the add to quote button

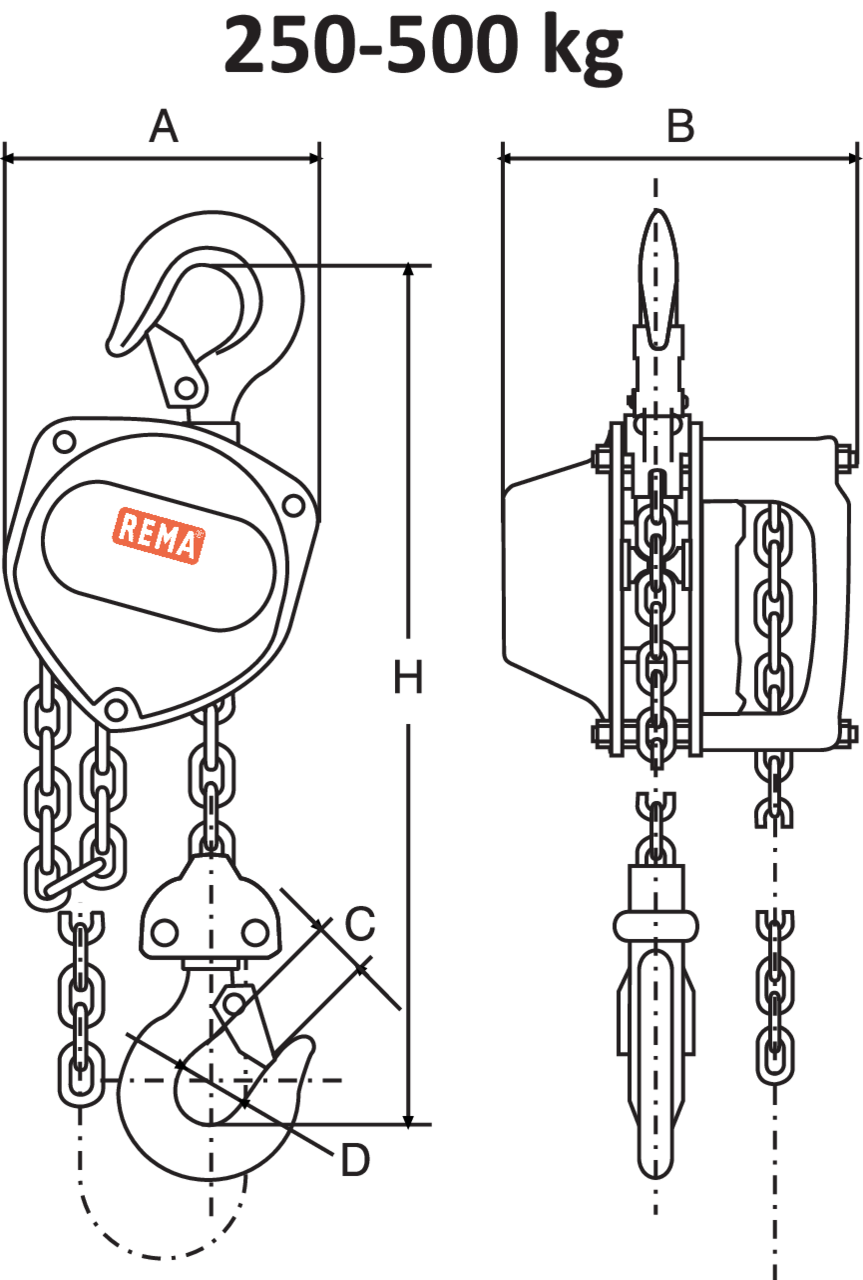

Part Code Code WLL
kg
Model Load Chain dia x pitch
mm
Hand Chain dia x pitch
mm
Chain fall Construction height
mm
Hand force max.
kg
A
mm
B
mm
C
mm
D
mm
H
mm
Weight
kg
0171000 8717365118289 250 X-LINE/250KG/BLACK 4.0 x 12 5.0 x 23.7 1 280 23,5 108 106 20 30 280 6
0171001 8717365118296 500 X-LINE/500KG/BLACK 5.0 x 15 5.0 x 23.7 2 280 24,9 130 128 22 34 280 9
