The REMA Select 200 is a robust manual chain hoist for heavy and intensive use where safety, ergonomics and a low operating effort are paramount.

Properties

  • Equipped with a double pawl system.
  • Brake is provided with astbestos free friction discs.
  • Top and bottom hook have safety latches.
  • In case of overload, the hooks will gradually bend and do not suddenly break off.

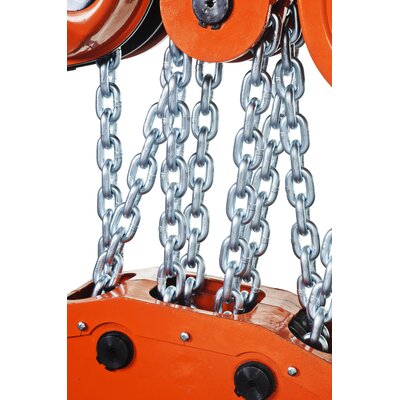

  • Galvanized load chain Grade 8.
  • Galvanized hand chain.

Standard delivery

  • 3 meters lifting height (max. between top and bottom hook).
  • 2.5 meters operating height.
  • Exclusive overload protection.

Option

  • Available in any other lifting and operational heights.
  • Marking: According to standard, CE-marked
  • Standard: EN 13157, EN 818-7
Select a row from the table below, then click the add to quote button
Part Code Code WLL
kg
Lifting height
m
Model Load Chain dia x pitch
mm
Hand Chain dia x pitch
mm
Chain falls Construction height
mm
Hand force max.
kg
A
mm
B
mm
C
mm
D
mm
H
mm
Weight
kg
0120017 8717365261695 15 S200-15000KG 9.0 x 27 5.0 x 23.7 6 920 40 386 183 62 77 920 162,6
0120019 8717365261701 20 S200-20000KG 9.0 x 27 5.0 x 23.7 (2x) 8 1 060 40 577 183 75 90 1 060 186
0120021-3 8717365177880 30 3 S200/30000KG/3M 10.0 x 28 5.0 x 23.7 (2x) 12 980 40 705 452 85 110 1 450 200
