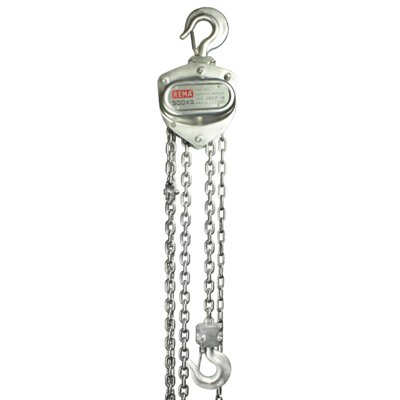

The Rema RIH hand hoist is a robust manual chain hoist made entirely of stainless steel, which is suitable for use in the food industry or other environments wherethere is high humidity and there is sensitivity to corrosion.

Properties

  • Suitable for highly corrosive environments or dust-free rooms - clean room environment
  • Maximum protection against corrosion
  • Load and hand chain AISI 316
  • Cover caps AISI 304
  • Stainless steel components
  • Hooks and load chain wheel, plates: AISI 304
  • Electrolytically polished surface.

Standard delivery

  • 3 meters lifting height (max. between top and bottom hook).
  • 2.5 meters operating height.

Options

  • Available in any other lifing and operational heights.
  • Stainless steel trolley.
  • Material: Stainless steel AISI-316 and AISI-304
  • Marking: According to standard, CE-marked
  • Standard: EN 13157, EN 818-7
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
Model Load Chain dia x pitch
mm
Hand Chain dia x pitch
mm
Chain fall Construction height
mm
Hand force max.
kg
A
mm
B
mm
C
mm
D
mm
H
mm
Weight
kg
0110001 8717365177569 0,5 RIH-500KG 6.3 x 19 5.0 x 23.3 1 355 22 150 140 Ø35 27 355 12,5
0110003 8717365177576 1 RIH-1000KG 7.9 x 23 5.0 x 23.3 1 425 25,5 193 162,4 Ø43 32 425 20,5
