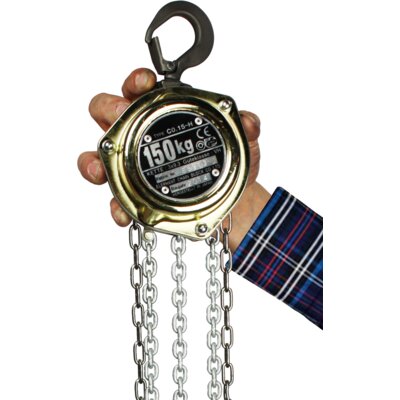

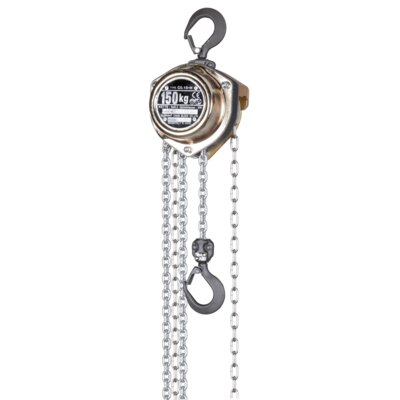

The REMA HOISTMAN is a lightweight mini-hand chain hoist. Very compact for use in confined spaces and where a low self weight is desirable.

Properties

  • Steel chromed body.
  • Little operating effort at maximum load due to bearing shafts.
  • Double pawl system.
  • Self-locking brake that holds the load at any desired height.
  • Top and bottom hook have safety latches.
  • In case of overload, the hooks will gradually bend and do not suddenly break off.
  • Galvanized load chain (Grade 10).
  • Galvanized hand chain

Standard delivery

  • 2,5 meters lifting height (maximum distance between top and bottom hook).
  • 2 meters operating height.
  • Marking: According to standard, CE-marked
  • Standard: EN 13157, EN 818-7
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
Model Load Chain dia x pitch
mm
Hand Chain dia x pitch
mm
Chain fall Construction height
mm
Hand force max.
kg

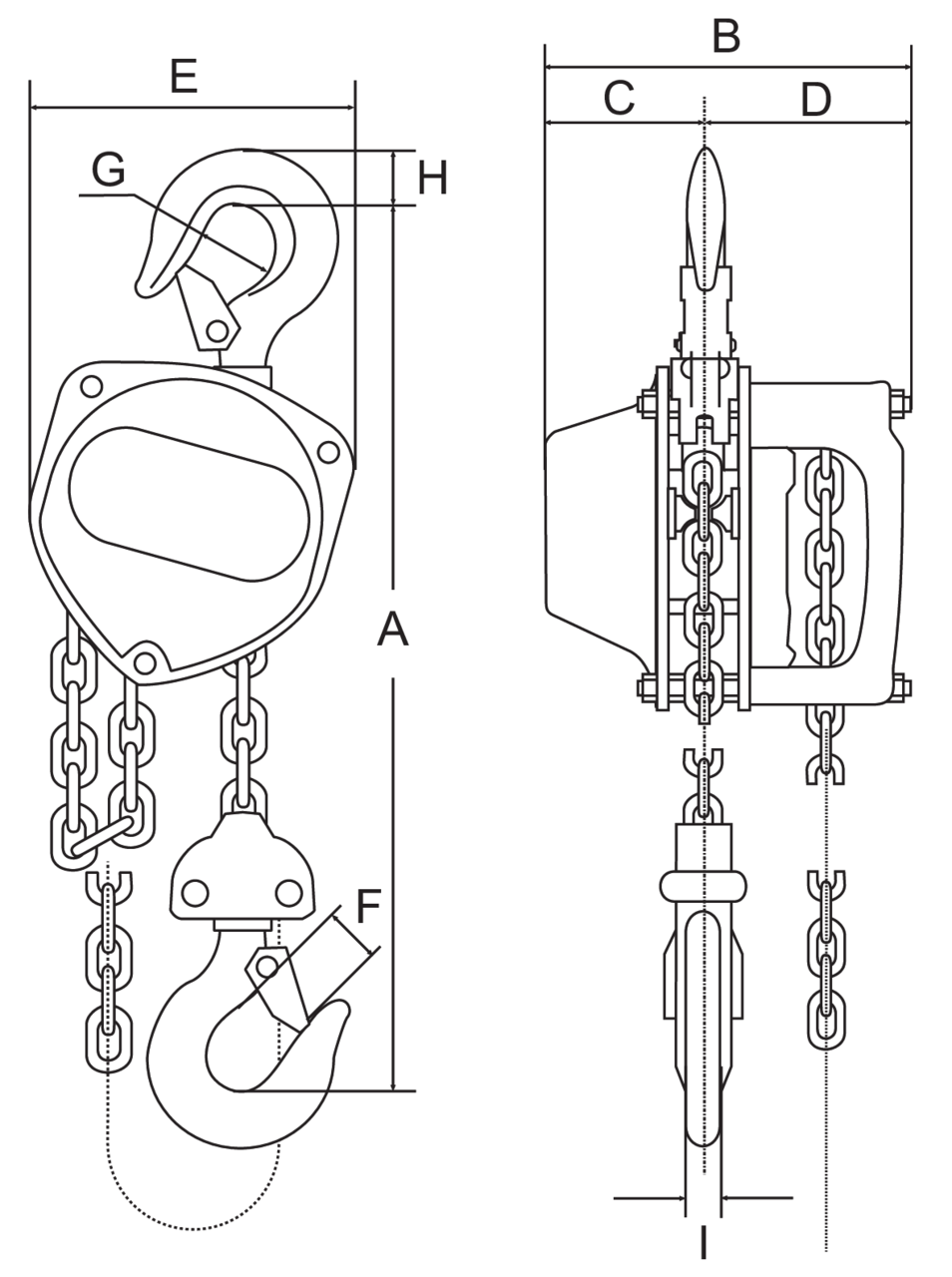

A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
I
mm
Weight
kg
0100000 8717365000676 0,15 HOISTMAN-150KG 3.1 X 9.3 2.5 X 14 1 220 17 220 103 46 57 102 14 24 11 9 2,8
0100002 8717365115196 0,25 HOISTMAN-250KG 3.1 X 9.3 2.5 X 14 1 220 20 220 103 46 57 102 14 24 11 9 2,8
