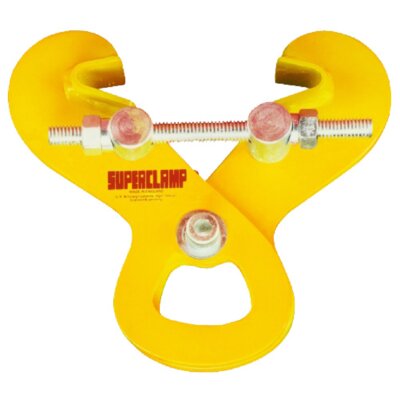

REMA Superclamp series S fitted with adjustable insets is an adjustable spindle beam clamp that grips beam flanges optimally allowing wider jaw openings.

Properties

  • For light industrial applications.
  • Compact design and low tare weight.
  • Easy mounting.
  • Marking: According to standard, CE-marked
  • Standard: EN 12100, EN 13157
    Select a row from the table below, then click the add to quote button

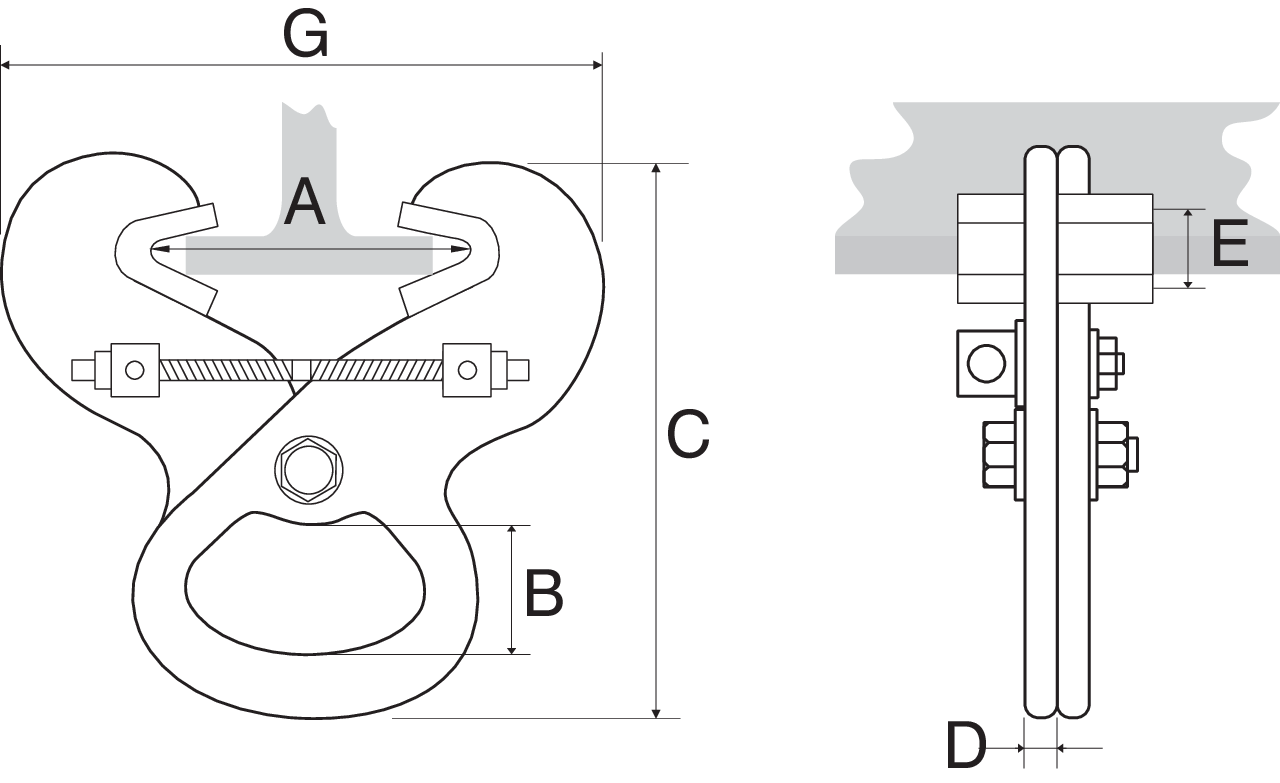

    Part Code Code WLL
    ton
    Beam width
    mm
    Model A
    mm
    B
    mm
    C
    mm
    D
    mm
    E
    mm
    G
    mm
    Weight
    kg
    3501001 8717365016707 1 96-190 PFC1 96 - 190 38 212 6 22 220 2,1
    3501002 8717365016714 2 96-190 PFC2 96 - 190 38 212 6 22 220 2,5
