Robust construction, easy functioning. Specially for intensive working enviroments

Properties

  • Collapsible easy to transport.
  • Robust construction.
  • Hard chromed cylinder.
  • Braked steering wheels can be rotated 360 °.
  • Rotating load hook (not under load).
  • Lever adjustable in 3 positions.
  • 125% proofed.
  • Safety valve against overload.
  • GWK-1000 has extra long legs.
  • Marking: According to standard, CE-marked
  • Standard: EN 12100, EN 14985
    Select a row from the table below, then click the add to quote button

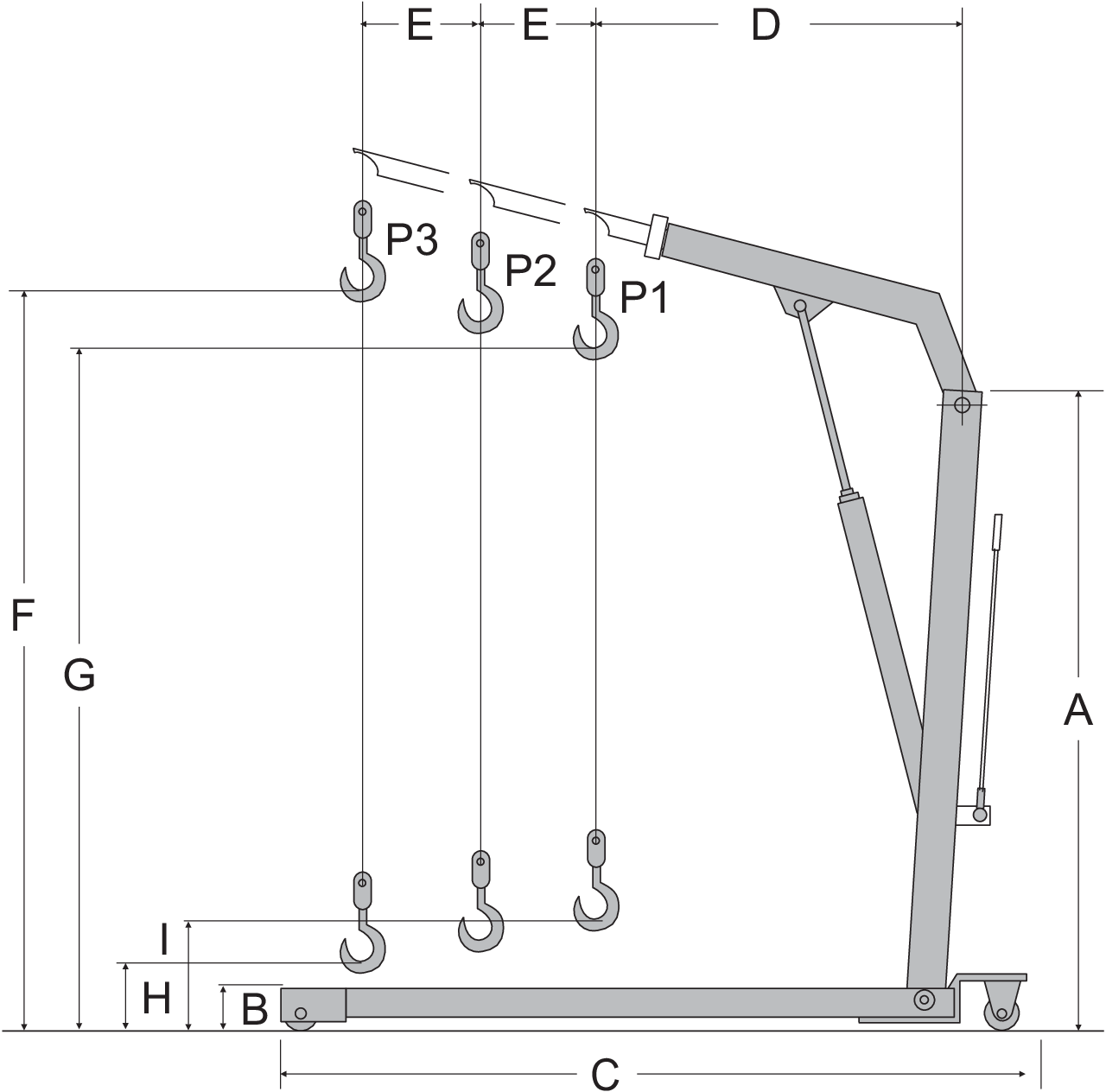

    Part Code Code WLL Model Width
    mm
    WLL P1
    kg
    WLL P2
    kg
    WLL P3
    kg
    A
    mm
    B
    mm
    C
    mm
    D
    mm
    E
    mm
    F
    mm
    G
    mm
    H
    mm
    I
    mm
    Weight
    4220015 8717365020476 0,5 GWK-500 970 500 425 350 1 410 165 1 510 895 102 2 120 1 960 130 340 75
    4220017 8717365020483 1 GWK-1000 1 120 1 000 800 700 1 675 90 1 630 1 230 150 2 445 2 330 - 245 115
    4220019 8717365019524 2 GWK-2000 1 165 2 000 1 700 1 500 1 690 205 1 900 1 290 150 2 705 2 505 - 230 165
