Properties

  • Load pressure brake.
  • Adjustable crank length; backwind-free.
  • Drums and axes run on needle bearings.
  • Models above load capacity of 2 kg have two speeds, which is operated by changing the crank over.
  • Paint finish and enamel varnish are standard.

Standard delivery

  • Does not include wire rope.

Option

  • Steel wire rope on request.
  • Marking: According to standard, CE-marked
  • Standard: EN 13157, EN 12100
    Select a row from the table below, then click the add to quote button
    Part Code Code WLL Model Cable Diameter
    mm
    Lift/crank turn
    mm
    Max. reel capacity
    mm
    Force on the handle
    kg
    Load capacity last layer
    kg
    load capacity 1st layer
    kg
    Weight
    2016001 8717365008771 0,25 WW-250 4 17 104 3,5 95 250 13
    2016003 8717365008788 0,5 WW-500 6 20 78 9 239 500 16
    2016005 8717365008795 1 WW-1000 8 13 63 15,5 542 1 000 26
    2016007 8717365008801 1,5 WW-1500 10 9 41 19 845 1 500 28
    2016009 8717365008818 2 WW-2000 12 12/6 46 22/13 1 129 2 000 60
    2016011 8717365008825 3 WW-3000 14 11/6 52 27/14 1 861 3 000 78
    2016012 8717365024269 4 WW-4000 16 11/4 52 35/13 2 390 4 000 80
    2016013 8717365008849 5 WW-5000 18 12/4 40 58/17 3 165 5 000 115

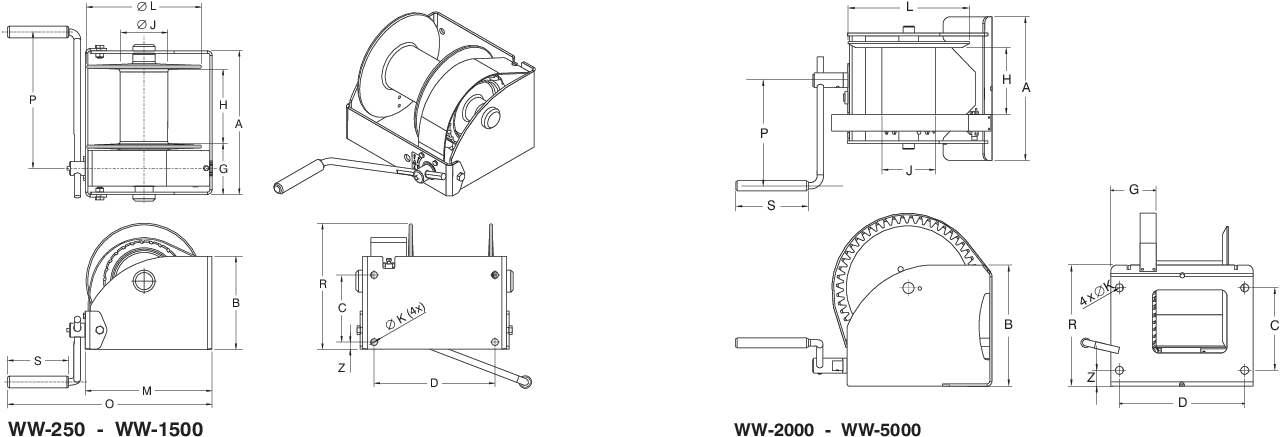

    Type A B C D G H J K L M N O P R S
    WW-250 238 145 100 192 106 102 48 14 160 191 15 410 280 171 130
    WW-500 269 160 115 223 107 131 70 14 190 221 15 440 325 192 130
    WW-1000 302 195 141 254 110 160 102 14 240 266 15 490 350 264 130
    WW-1500 302 250 178 254 111 160 102 14 240 278 15 490 350 306 130
    WW-2000 410 310 196 360 137 176 133 25 312 382 45 724 380 421 220
    WW-3000 436 365 251 386 137 176 165 25 376 442 47 784 380 523 220
    WW-4000 436 365 251 386 137 174 165 25 376 442 47 784 380 523 220
    WW-5000 436 425 316 386 137 200 219 25 437 494 38 836 380 599 220
