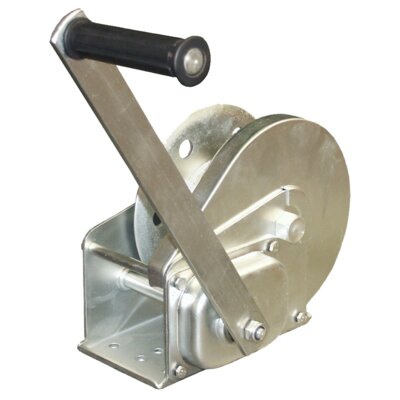

The compact REMA TWZ and TWR winches are self locking; they are manufactured from pressed steel plate to ensure durable strength. These winches are utilized in many areas such as: food industry, maritime sector, poultry breeding, trailer manufacturing etc.
TWZ: Galvanized.
TWR: Stainless steel. (AISI 304)

Properties

  • Automatic load pressure brake that can hold loads at any desired height.
  • Double locking pawl system for extra safety (82 and 12 kg).
  • Drive and brake in an enclosed housing.
  • Demountable crank.
  • Simple wire rope equipment.

Standard delivery

  • Does not include wire rope.

Option

  • Steel wire rope with hook and safety latch.
  • Marking: According to standard, CE-marked
  • Standard: EN 12100, EN 13157
  • Warning: For lifting, select another wire rope diameter, taking tensile strength into consideration.
    Select a row from the table below, then click the add to quote button
    Part Code Code WLL
    ton
    Model Cable Diameter
    mm
    Lift/crank turn
    mm
    Gear ratio Max. reel capacity
    mm
    Min load
    kg
    Force on the handle
    kg
    Drum
    mm
    Length handle
    mm
    Pulling capacity
    kg
    Weight
    kg
    2111001 8717365008856 0,18 TWZ-800 4 34 4.1 : 1 36 10 14,5 48 x 50 210 360 3
    2112003 8717365008894 0,22 TWR-1200 5 42 4.1 : 1 23 10 15 48 x 50 210 440 3,3
    2111003 8717365008863 0,275 TWZ-1200 5 42 4.1 : 1 23 10 15 48 x 50 210 550 3,3
    2112005 8717365008900 0,33 TWR-1800 6 49 5.0 : 1 20 15 22 60 x 60 320 660 8
    2111005 8717365008870 0,41 TWZ-1800 7 49 5.0 : 1 20 15 22 60 x 60 320 820 8
    2112007 8717365008917 0,48 TWR-2600 8 28 10.0 : 1 18 20 19 75 x 63 320 960 10,3
    2111007 8717365008887 0,59 TWZ-2600 8 28 10.0 : 1 18 20 19 75 x 63 320 1 180 10,3
