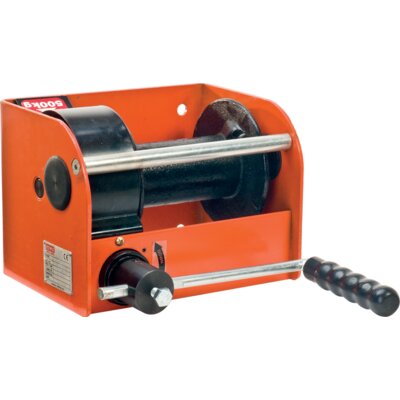

Properties

  • Braked design.
  • Crank gradually adjustable in length.
  • Drum and shafts provided with bearings.
  • Freewheel, through protected pawl system.
  • Powdercoating RAL24.

Standard delivery

  • Does not include wire rope.

Option

  • Steel wire rope on request and hook with safety latch.
  • Marking: According to standard, CE-marked
  • Standard: EN 12100, EN 13157
    Select a row from the table below, then click the add to quote button
    Part Code Code WLL Model Cable Diameter
    mm
    Gear ratio Max. reel capacity
    mm
    Length handle
    mm
    Load capacity last layer
    kg
    load capacity 1st layer
    kg
    Weight
    2018001 8717365259296 0,25 RWL-250 5 15:1 20 250/100 75 250 11
    2018003 8717365259302 0,5 RWL-500 6 24:1 30 250/100 300 500 17
    2018005 8717365259319 1 RWL-1000 10 26:1 35 350/100 550 1 000 36

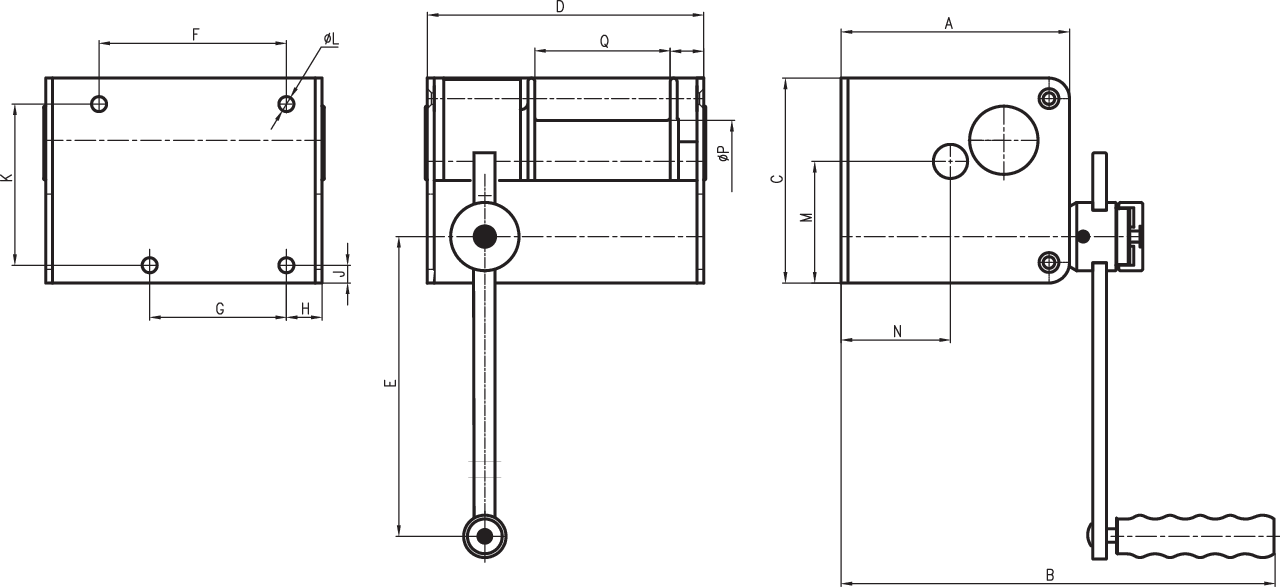

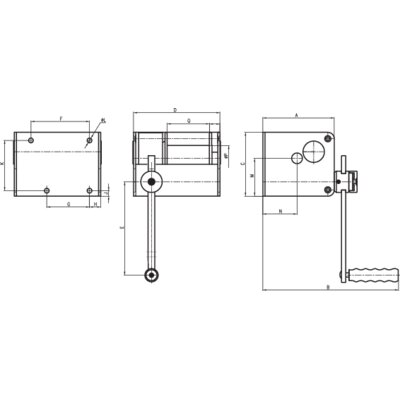

    Model A B C D F G H J K L M N Q P
      mm mm mm mm mm mm mm mm mm mm mm mm mm mm
    RWL-250 167 332 150 202 137 100 26 13 118 11 89 80 99 24.5
    RWL-500 195 367 190 260 182 132 33 18 142 13 111.5 94 146 32
    RWL-1000 295 490 300 300 167 167 32 21 250 17 180.5 136 158 33
