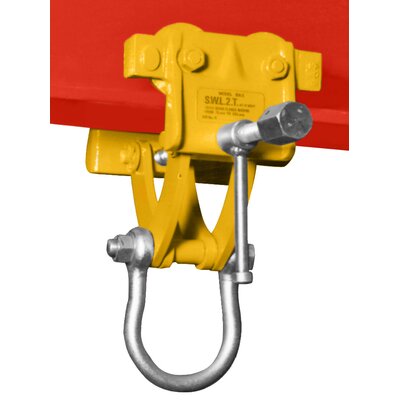

Adjustable spindle hand trolley with rod-type securing nuts.

Properties

  • Compact design and low tare weight.
  • Can be mounted quickly by means of a spindle.
  • Rod-type securing nuts for added safety.
  • With wheel fracture support device.
  • Maximum beam thicknes for type A1=28 mm and A2/A3 = 3 mm.
  • Marking: According to standard, CE-marked
  • Standard: EN 13157, EN 12100
Select a row from the table below, then click the add to quote button

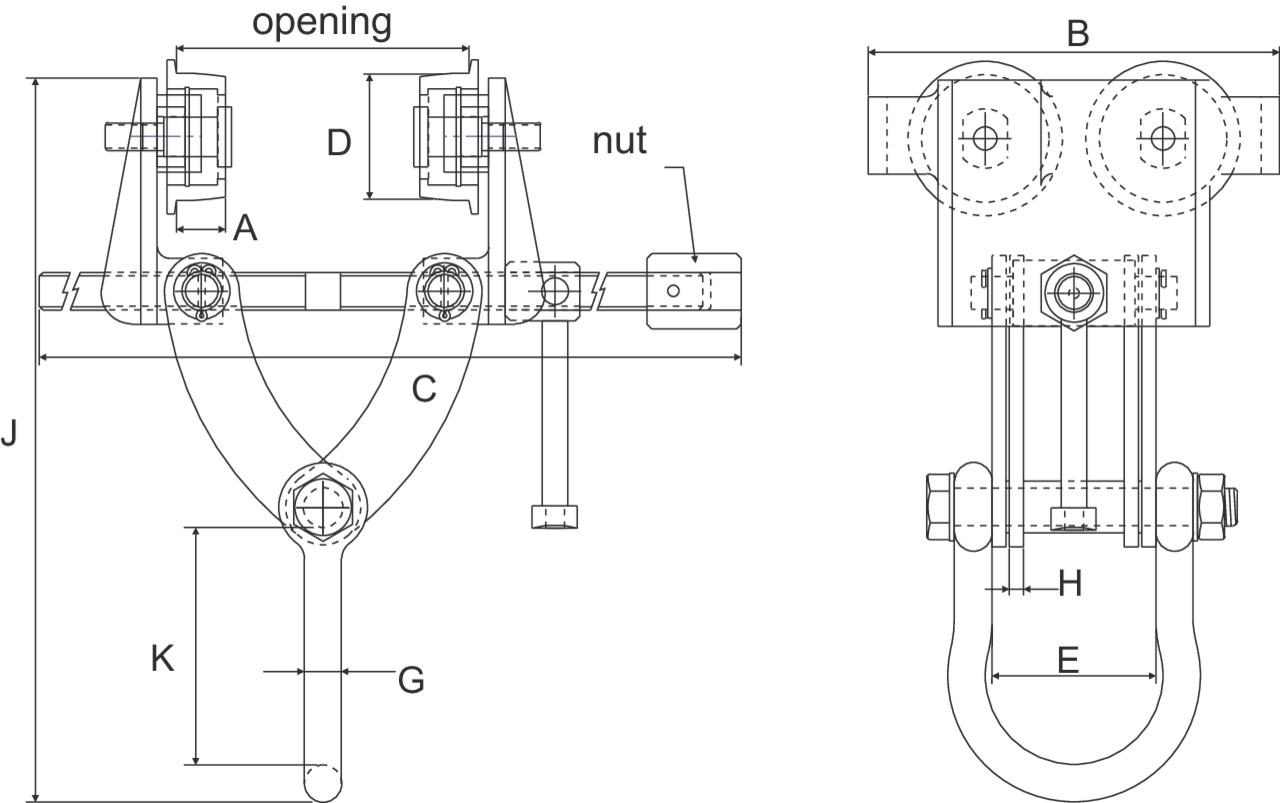

Part Code Code WLL Model Jaw opening
mm
A
mm
B
mm
C
mm
D
mm
E
mm
G
mm
H
mm
J
mm
K
mm
Weight
3513001 8717365017209 1 BA1 63-203 14 176 360 46 70 16 6 309 101 6,5
3513003 8717365017216 1,5 BA2 76-203 21 176 360 54 70 16 6 309 101 7,2
3513005 8717365017223 2 BA3 76-203 21 176 360 54 70 16 8 309 101 7,2
