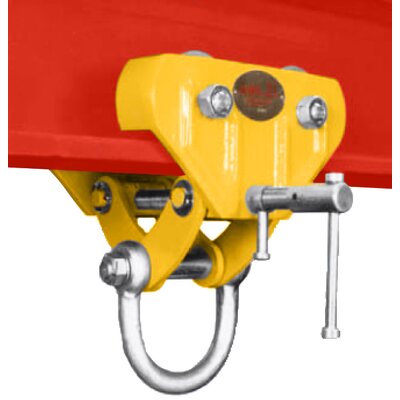

Adjustable spindle hand trolley with rod-type securing nuts.

Properties

  • Robust design.
  • Can be mounted quickly by means of a spindle.
  • Rod-type securing nuts for added safety.
  • With wheel fracture support device.
  • Marking: According to standard, CE-marked
  • Standard: EN 12100, EN 13157
    Select a row from the table below, then click the add to quote button
    Part Code Code WLL Beam width
    mm
    Model A
    mm
    B
    mm
    C
    mm
    D
    mm
    G
    mm
    H
    mm
    L
    mm
    N
    mm
    Weight
    3514001 8717365017230 3 76-203 B1 76-203 395 112 133 82 480 269 33 23,5
    3514003 8717365017247 6 105-305 B2 105-305 515 100 176 125 560 356 34 50
    3514005 8717365017254 10 105-305 B3 105-305 570 130 200 145 785 430 41 74,5
