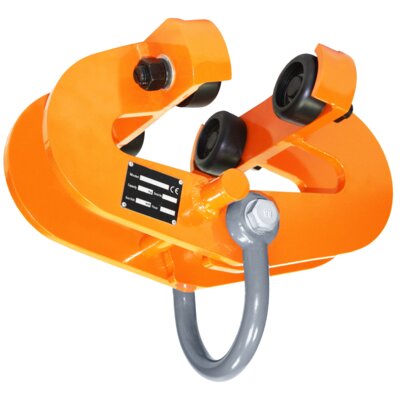

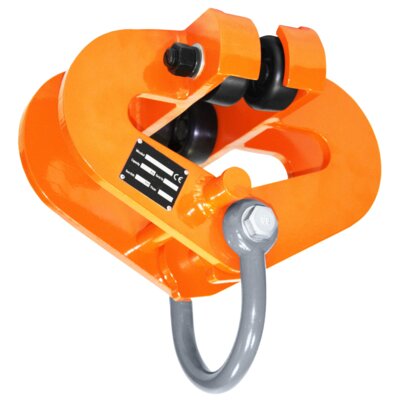

Simple and quick assembly by folding the self-closing trolley close to the flange of the beam.

Properties

  • Suitable for flat or bevel profiles.
  • Equipped with steel wheels with maintenance-free bearings.
  • Compact and lightweight.
  • With wheel rupture supports.
  • Marking: According to standard, CE-marked
  • Standard: EN 12100, EN 13157
    Select a row from the table below, then click the add to quote button

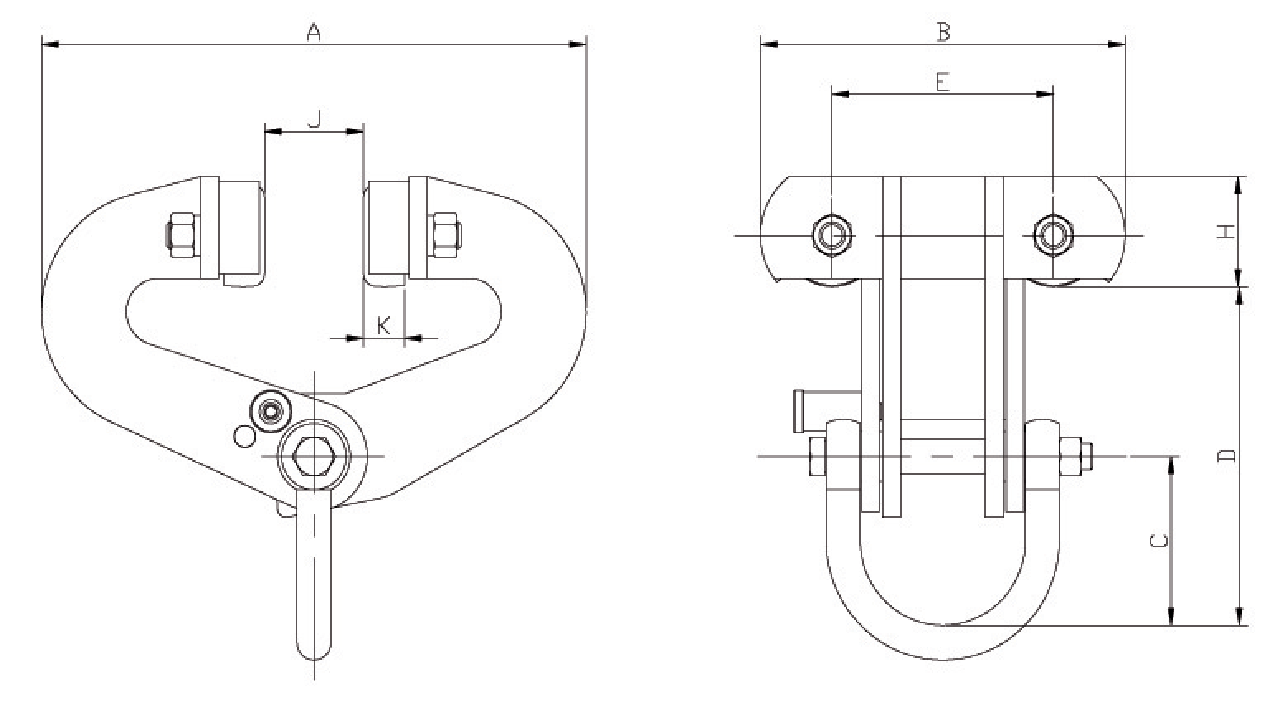

    Part Code Code WLL
    kg
    Beam width
    mm
    Model A
    mm
    B
    mm
    C
    mm
    D
    mm
    E
    mm
    H
    mm
    J
    mm
    K
    mm
    Weight
    kg
    0942003 8717365114830 3 000 76-230 RMSLT-3T 380 280 126 253 170 82 25 32 21
    0942006 8717365114847 6 000 100-305 RMSLT-6T 500 296 126 290 170 88 30 38 32
    0942010 8717365114854 10 000 120-305 RMSLT-10T 600 310 131 290 170 113 44 43 54
