Properties

  • Suitable for flat or bevel profiles.
  • Equipped with solid steel wheels with maintenance-free bearings.
  • Compact and lightweight.
  • Quick assembly through threaded adjustable.
  • Safe by locking lever.
  • With wheel rupture supports.
  • Marking: According to standard, CE-marked
  • Standard: EN 12100, EN 13157
Select a row from the table below, then click the add to quote button

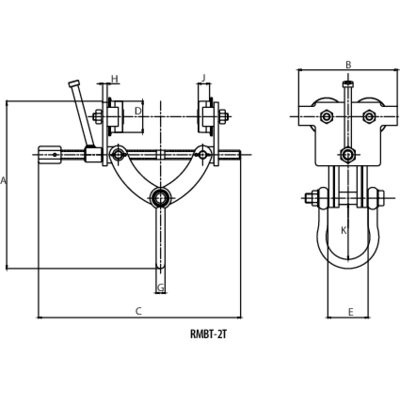

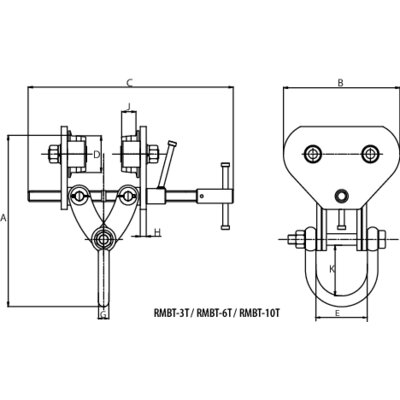

Part Code Code WLL
kg
Model Flange width
mm
A
mm
B
mm
C
mm
D
mm
E
mm
G
mm
H
mm
J
mm
K
mm
Weight
kg
0940002 8717365114786 2 000 RMBT-2T 76-203 272 176 360 54,5 72 16 8 21 95 7
0940003 8717365114793 3 000 RMBT-3T 76-203 381 270 475 82,5 118,5 25,5 14 33 113 25
0940006 8717365114809 6 000 RMBT-6T 105-305 429 356 560 125 116 26 16 34 100 52
0940010 8717365114816 10 000 RMBT-10T 160-305 541 430 630 145 119 32 16 41 110 74
