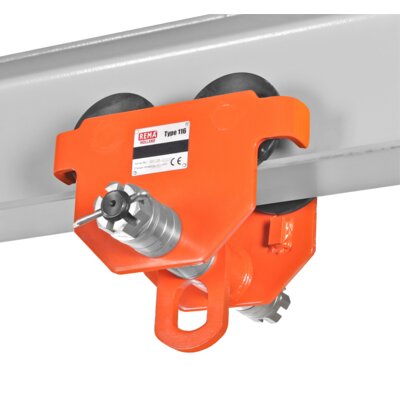

Properties

  • Adjustable flange by adding or removing rings.
  • Suitable for various profiles, with flat or bevel flange.
  • Equipped with solid steel machined wheels.
  • Bearing by maintenance-free ball bearings.
  • Wheel rupture supports and tilt protection provide extra safety.
  • Marking: According to standard, CE-marked
  • Standard: EN 12100, EN 13157
    Select a row from the table below, then click the add to quote button
    Part Code Code WLL
    kg
    Beam width
    mm
    Model Min. curve radius
    mm

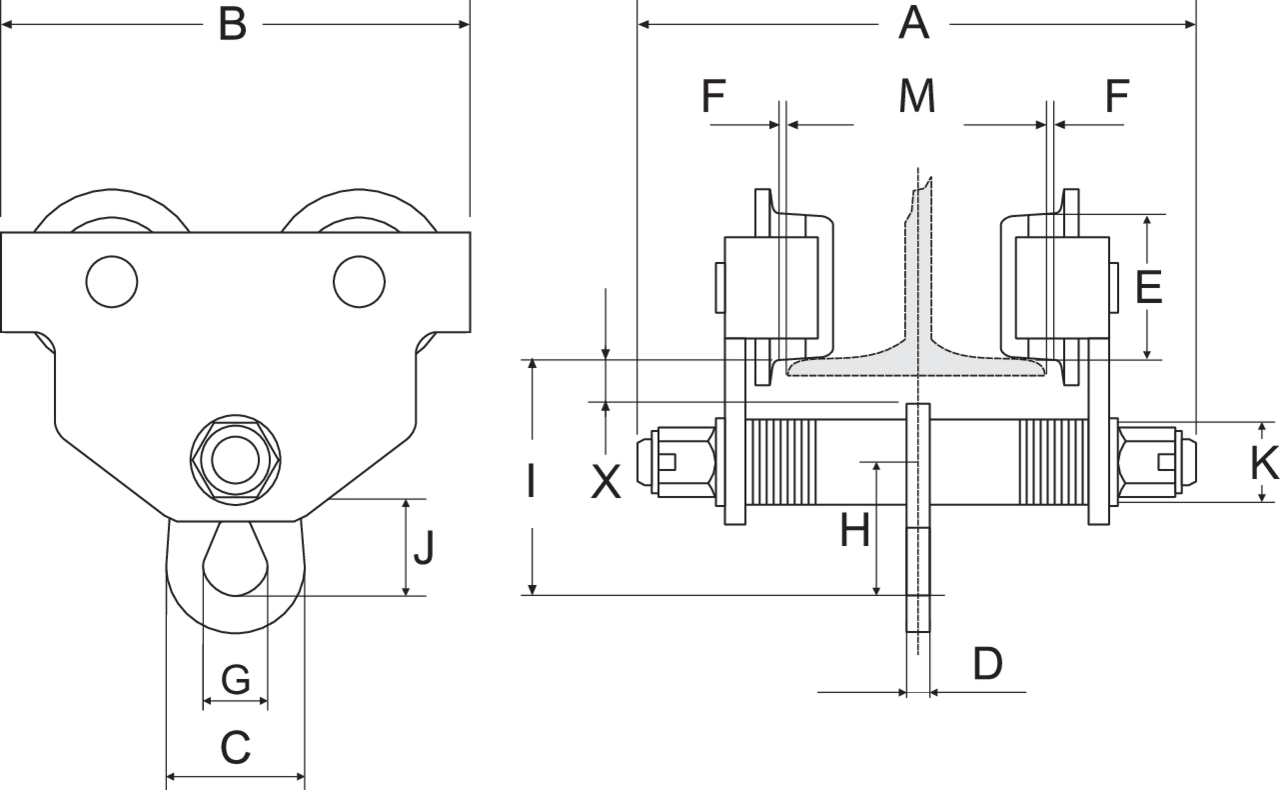

    A
    mm
    B
    mm
    C
    mm
    D
    mm
    E
    mm
    F
    mm
    G
    mm
    H
    mm
    I
    mm
    J
    mm
    X
    mm
    K
    mm
    Weight
    kg
    0921001 8717365003066 500 50-152 116-0.5 800 245 199 51 6 55 1.5~3 24 37 105 25 25 24 6,5
    0921003 8717365003073 1 000 64-203 116-1.0 1 000 311 246 62,5 8 68 1.5~3 30 46 125 31 31 30 10,5
    0921005 8717365003080 2 000 88-203 116-2.0 1 100 327 276 76 12 80 1.5~3 36 58 150 40 40 36 17,5
    0921007 8717365003097 3 000 100-203 116-3.0 1 300 343 332 86 13,6 100 1.5~3 42 90 171 69 69 42 27
    0921009 8717365003103 5 000 114-203 116-5.0 1 400 355 377 109 16,4 110 1.5~3 48 110 196 86 86 48 41
