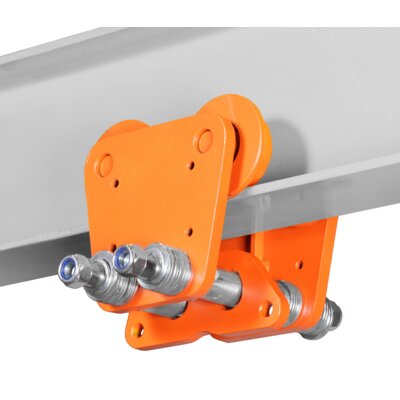

REMA HFN trolleys can only be assembled together with the REMA SR electric chain hoists.

Properties

  • Double axle design.
  • Wheel rupture supports and anti-surge devices.
  • Equipped with steel machined wheels.
  • Assembly and suspension plates not included.
  • Marking: According to standard, CE-marked
  • Standard: EN 12100, EN 13157
  • Note: Allways mention the right flange width in mm.
    Select a row from the table below, then click the add to quote button

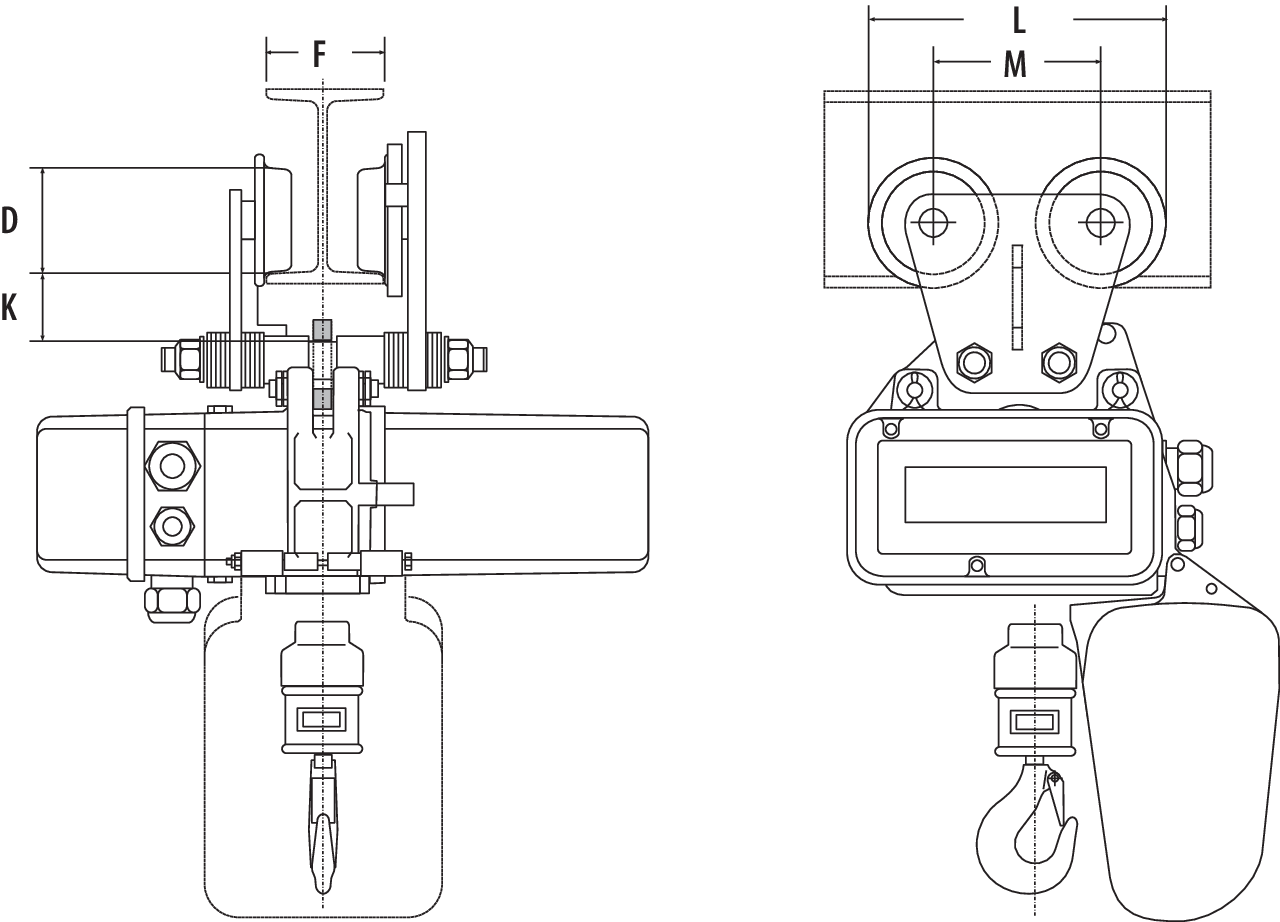

    Part Code Code WLL
    ton
    Beam width
    mm
    Model D
    mm
    F
    mm
    K
    mm
    L
    mm
    M
    mm
    Weight
    kg
    0814001 8717365002229 0,5 300 HFN500 70 50-300 33 200 112 8
    0814003 8717365002243 2 300 HFN2000 70 66-300 35 200 112 10
    0814005 8717365002250 3,2 300 HFN3200 103 82-300 35 288,5 152,5 22
    0814007 8717365022562 6,3 310 HFN6300 122 90-310 36 351 191 47
