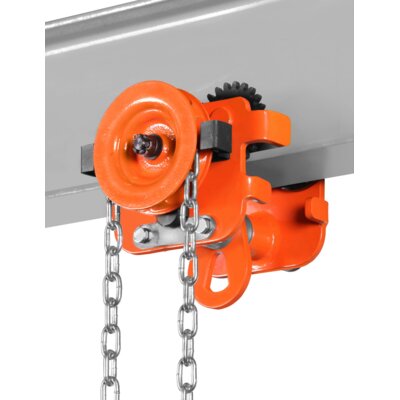

Suitable for various profiles, both for flat or bevel flange.

Properties

  • Suitable for flat or bevel flange
  • Adjustable flange width by adding or removing rings.
  • Solid steel wheels, bearing of maintenance-free ball bearings.
  • Short construction height in combination with REMA Select 200 OD hoist 0.5 / 1.0 / 2.0T, by link that replaces the upper hook.
  • Wheel rupture supports and anti-surge protection ensure optimum safety.
  • 211 type, standard version.
  • 211BF type, wide flange version.
  • Galvanised hand chain 5 x 23,7 mm.

Standard delivery

  • 3 meter operating height.

Option

  • Longer or shorter operating chain.
  • Marking: According to standard, CE-marked
  • Standard: EN 12100, EN 13157, EN 818-7
Select a row from the table below, then click the add to quote button

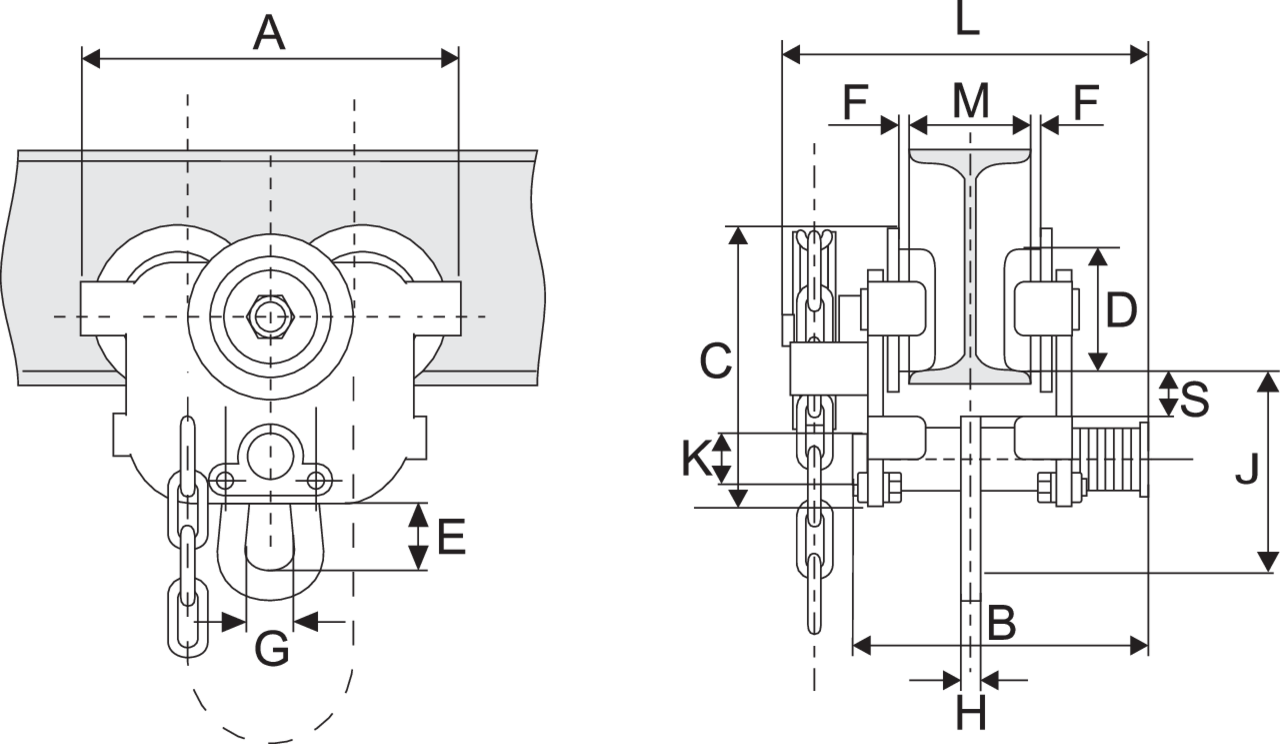

Part Code Code WLL
kg
Model Flange width
mm
Min. curve radius
mm
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
J
mm
K
mm
L
mm
S
mm
Weight
kg
0925001 8717365260322 500 212-0,5T-50-135 50-135 800 205 198 150 55 30 1,5~3 28 8 111 28 239 27 8
0925003 8717365260339 1 000 212-1.0T-55-140 55-140 1 000 242 211 174 68 30 1,5~3 32 10 118 32 254 28 12,4
0925005 8717365260346 2 000 212-2.0T-65-155 65-155 1 100 270 238 194 80 49 1,5~3 40 12 147 36 277 27 18,1
0925007 8717365260353 3 000 212-3.0T-90-160 90-160 1 300 325 246 234 100 60 1,5~3 49 14 177 44 287 29 30,3
0925009 8717365260360 5 000 212-5.0T-90-180 90-180 1 500 370 280 267 110 79 1,5~3 59 16 219 55 320 29 46,5
0925101 8717365262043 500 212BF-0.5T-130-215MM 130-215 800 205 278 150 55 30 1,5~3 28 8 111 28 239 27 8
0925102 8717365262050 500 212BF-0.5T-215-300MM 215-300 800 205 363 150 55 30 1,5~3 28 8 111 28 239 27 8
0925201 8717365262067 1 000 212BF-1.0T-140-215MM 140-215 1 000 242 286 174 68 30 1,5~3 32 10 118 32 254 28 12,4
0925202 8717365262074 1 000 212BF-1.0T-215-300MM 215-300 1 000 242 371 174 68 30 1,5~3 32 10 118 32 254 28 12,4
0925301 8717365262081 2 000 212BF-2.0T-150-230MM 150-230 1 100 270 313 194 80 49 1,5~3 40 12 147 36 277 27 18,1
0925302 8717365262098 2 000 212BF-2.0T-230-300MM 230-300 1 100 270 383 194 80 49 1,5~3 40 12 147 36 277 27 18,1
0925401 8717365262104 3 000 212BF-3.0T-160-230MM 160-230 1 300 325 316 234 100 60 1,5~3 49 14 177 44 287 29 30,3
0925402 8717365262111 3 000 212BF-3.0T-230-300MM 230-300 1 300 325 386 234 100 60 1,5~3 49 14 177 44 287 29 30,3
0925501 8717365262128 5 000 212BF-5.0T-180-230MM 180-230 1 500 370 330 267 110 79 1,5~3 59 16 219 55 320 29 46,5
0925502 8717365262135 5 000 212BF-5.0T-230-300MM 230-300 1 500 370 400 267 110 79 1,5~3 59 16 219 55 320 29 46,5
