Properties

  • Surface finish: zinc phosphate primer RAL 2004 (orange).
  • Capacity range labelling.
  • Black-and-yellow safetymarkings at beam ends.
  • Hooks equipped with safetylatches.
  • High quality steel hooks grade 10.

Option

  • Sandblasting and painting in every RAL color.
  • Higher load capacity and bigger dimensions on request.
  • Marking: According to standard, CE-marked
  • Standard: EN 1677-1, EN 12100, EN 13155
    Select a row from the table below, then click the add to quote button

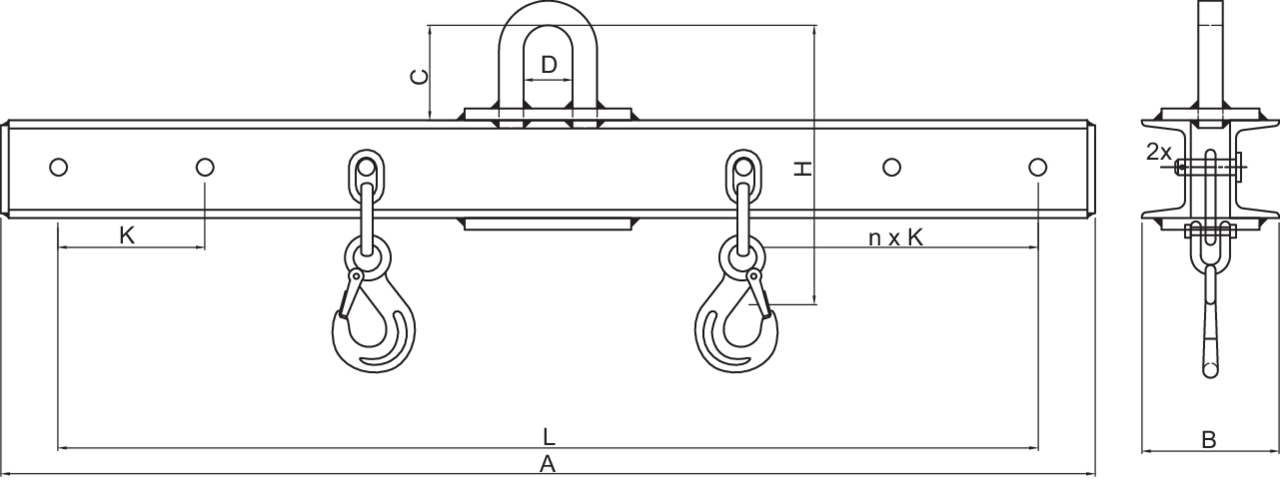

    Part Code Code WLL Model B2
    mm
    C
    mm
    D
    mm
    H
    mm
    L
    mm
    n x k
    mm
    Weight
    3962041 8717365017841 1 TRA-VE-1000-1M 140 85 55 380 1 000 2 x 150 30
    3962043 8717365017858 1 TRA-VE-1000-1,6M 140 85 55 400 1 600 3 x 150 40
    3962045 8717365017865 1 TRA-VE-1000-2,5M 160 85 55 420 2 500 5 x 150 67
    3962047 8717365017872 1 TRA-VE-1000-3,15M 170 85 55 420 3 150 7 x 150 100
    3962049 8717365017889 1,6 TRA-VE-1600-1,6M 150 85 55 480 1 600 2 x 200 48
    3962051 8717365017896 1,6 TRA-VE-1600-2,5M 170 85 55 500 2 500 4 x 200 83
    3962053 8717365017902 1,6 TRA-VE-1600-3,15M 190 85 55 520 3 150 5 x 200 120
    3962055 8717365017919 1,6 TRA-VE-1600-4M 200 85 55 520 4 000 7 x 200 171
    3962057 8717365017926 2,5 TRA-VE-2500-2,5M 180 85 70 540 2 500 4 x 200 115
    3962059 8717365017933 2,5 TRA-VE-2500-3,15M 200 85 70 560 3 150 5 x 200 140
    3962061 8717365017940 2,5 TRA-VE-2500-4M 220 85 70 580 4 000 7 x 200 202
    3962063 8717365017957 2,5 TRA-VE-2500-5M 240 85 70 600 5 000 8 x 200 284
