Properties

  • 4 welded hooks (Grade 8) for stable suspension.
  • Surface finish: RAL 2004 (orange).
  • Capacity range labelling.
  • Black-and-yellow safety markings at beam ends.
  • Hooks equipped with safety latches.
  • Marking: According to standard, CE-marked
  • Standard: EN 13155, EN 12100, EN 1677-1
Select a row from the table below, then click the add to quote button

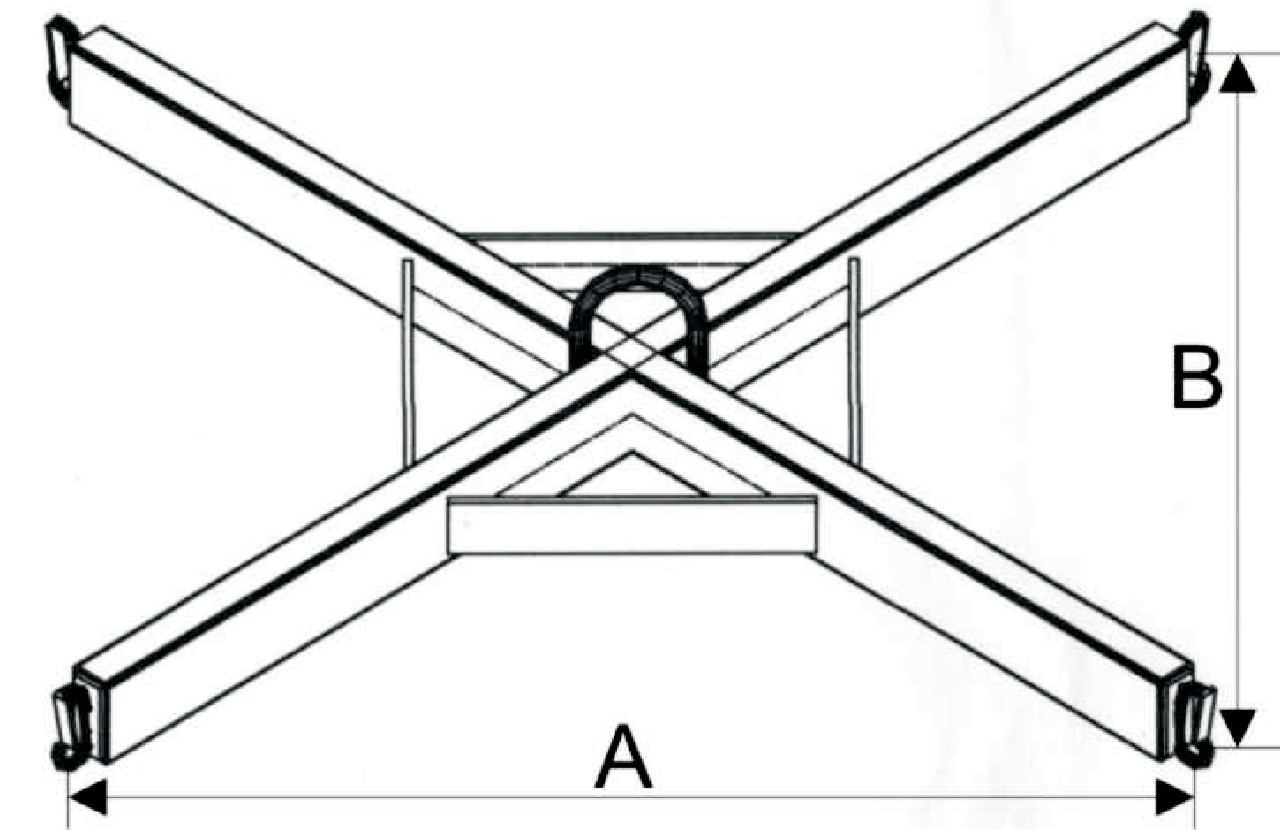

Part Code Code WLL Dia Eye
mm
Model Construction height
mm
A
mm
B
mm
Weight
3963010 8717365017964 1 25 BBJ-1.0 150 800 800 21
3963015 8717365021282 1,5 25 BBJ-1.5 150 800 800 24
3963020 8717365021299 2 25 BBJ-2.0 200 800 800 29
3963025 8717365017971 2,5 25 BBJ-2.5 200 800 800 31
