With the help of the REMA spring balancers, electric and pneumatic tools can be operated with minimal weight and posioned at the correct height.

Properties

  • Aluminum body.
  • Specially designed coil spring ensures a low-noise run.
  • Adjustable load capacity (button).
  • Carabiner attached.
  • Extra safety suspension, for safety chain.
  • Flexible stainless steel cable.
  • Resistance-free and wear-resistant cable guide.
  • Adjustable cable length.
  • Insulated suspension system.
  • Adjustable load capacity by a handle.
  • Spring break device; excluding 9320.
  • Type 9320 t / m 9340 fixation at 1 point.

Applications

  • For working with grinders, staplers, drills etc.
  • Marking: According to standard, CE-marked
  • Standard: EN 12100, DIN-EN 15112
    Select a row from the table below, then click the add to quote button

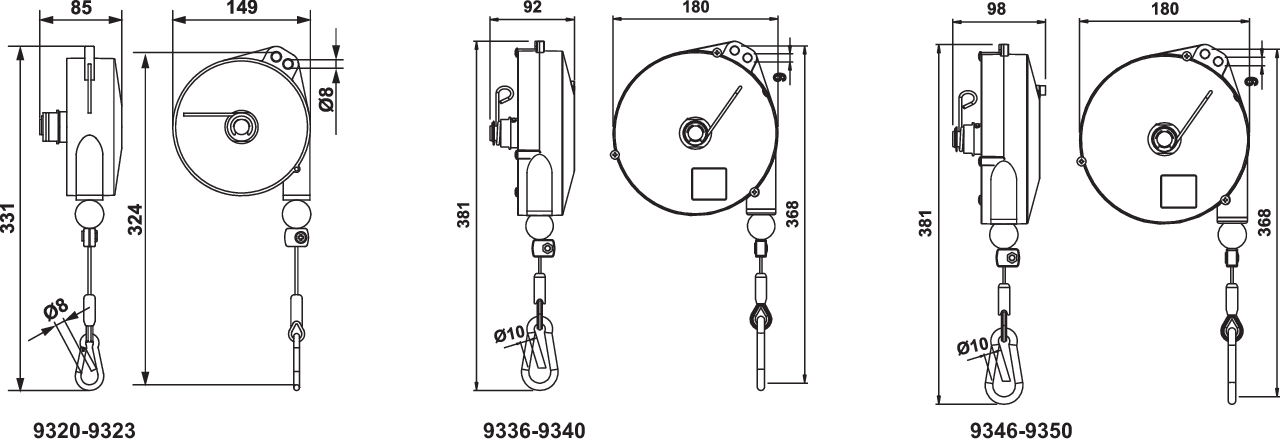

    Part Code Code Model Length
    m
    Max. working load
    kg
    Weight
    kg
    0629320 8717365000041 9320 2 1-2,5 2
    0629321 8717365020018 9321 2 2-4 2
    0629322 8717365000065 9322 2 4-6 2,3
    0629323 8717365000072 9323 2 6-8 2,5
    0629336 8717365258824 9336 2,5 2-4 2,9
    0629346 8717365258879 9346* 2,5 2-4 3
    0629337 8717365258831 9337 2,5 4-6 3,2
    0629347 8717365258886 9347* 2,5 4-6 3,3
    0629338 8717365258848 9338 2,5 6-8 3,5
    0629348 8717365258893 9348* 2,5 6-8 3,6
    0629339 8717365258855 9339 2,5 8-10 3,7
    0629349 8717365258909 9349* 2,5 8-10 3,8
    0629340 8717365258862 9340 2,5 10-14 4
    0629350 8717365258916 9350* 2,5 10-14 4,1

    * Type 9346 t / m 9350 fixation at several points by a small movement of the load.
