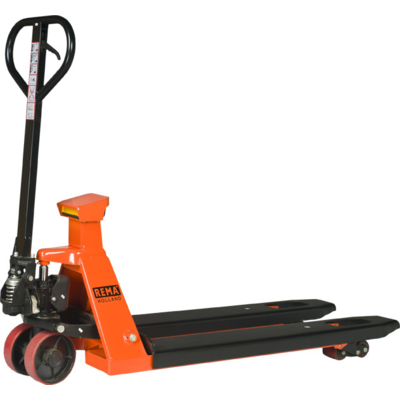

PTW weighing pallet trucks are supplied with a European digital read-out unit.

Properties

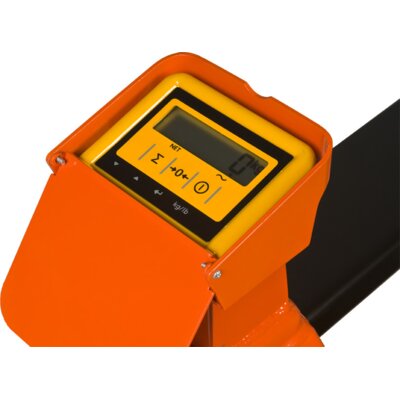

  • Digital read-out unit.
  • 4 measurement points in forks.
  • Accuracy approximately ,1% (approx 2 kg at 2 kg).
  • LED display with 18 mm high digits, scale division 1 kg.
  • Power supply: 4 AA batteries.
  • Duration of batteries is approx 1 year based on daily use
  • Steering wheels : polyurethane.
  • Temperature : -1 tot +4° C.
  • Automatic power economy mode, to save battery.
  • Design according to IP 65 (Nema 4) A3-type.
  • Marking: According to standard, CE-marked
  • Standard: EN 3691-5
    Select a row from the table below, then click the add to quote button
    Part Code Code Model Dimension
    mm
    Width of forks
    mm
    Minimum height of fork
    mm
    Version of fork roller Weight
    kg
    3401047 8717365021565 PTW-N 1150 x 555 180 85 Tandem 117
