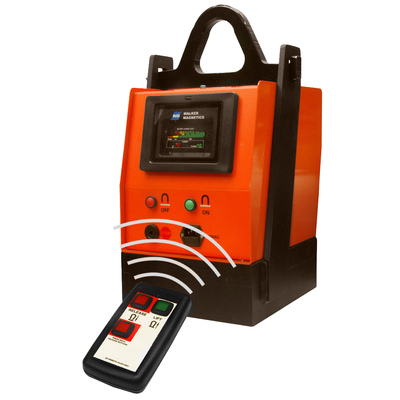

REMA RM battery magnets with built-in 12V battery are suitable for lifting both flat and round materials (type RMP).

Characteristics

  • Equipped with 12V battery with a working time of at least 8 hours.
  • Infrared remote control up to a distance of 4.5 meters.
  • Direct connection to 230V to charge battery.
  • LED indication for battery voltage.
  • Magnet design RM is 3-pole and RMP is 2-pole.
  • High safety requirements.

By means of the additional pressure switch under the lifting eye, the magnet cannot be switched off.

  • 2 pushbuttons must be pressed to release plates.
  • Equipped with acoustic signaling and LED light at low battery voltage.
  • Magnet cannot be switched on at low battery voltage.
  • Proven with 2 x the workload.
  • Battery type according to DIN43539-3.

Application

  • For lifting heavy, thick sheet materials up to a maximum load of 5000 kg.
  • Type RMP is also applicable to round materials from a minimum of 25 mm to 300 mm.
  • Marking: According to standard, CE-marked
  • Standard: EN 12100, EN 13155
    Select a row from the table below, then click the add to quote button

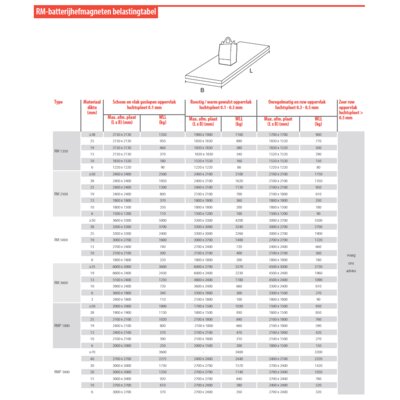

    Part Code Code WLL Size Model Thickness of material
    mm
    Maximum size of the load*
    mm
    WLL round materials
    t
    Weight
    3601031 8717365259470 1,35 272 x 242 x 460 RM-1350 38 2130 x 2130 - 60
    3601041 8717365259517 1,8 470 x 242 x 610 RMP-1800 50 2000 x 2000 1 130 167
    3601033 8717365259487 2,5 400 x 242 x 460 RM-2500 50 2400 x 2400 - 72
    3601035 8717365259494 3,6 1050 x 240 x 460 RM-3600 25 6000 x 3000 - 180
    3601043 8717365259524 3,6 760 x 262 x 620 RMP-3600 70 2700 x 2700 2 260 420
    3601037 8717365259500 5 1200 x 300 x 460 RM-5000 50 3600 x 3300 - 203
