Properties

  • Safety crank with foldable handle.

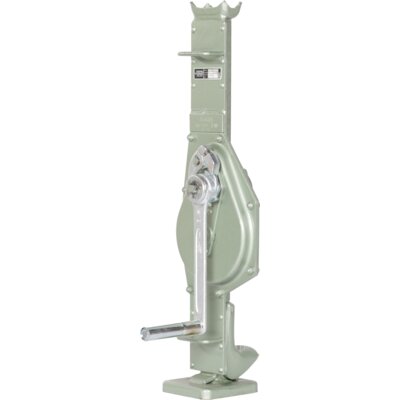

  • Type VHS standard model
  • Type VHS-R with Ratchet crank
  • Type KBH short model
  • Type KBH-R short model with ratchet crank.
  • Marking: According to standard, CE-marked
  • Standard: DIN-EN 7355, EN 13157, EN 12100
    Select a row from the table below, then click the add to quote button
    Part Code Code WLL Model Lifting height max
    mm
    Minimum height of fork
    mm
    Construction height
    mm
    Weight
    1902131 8717365163333 1,5 KBH-R-1.5 300 70 570 11
    1902031 8717365008597 1,5 KBH-1.5 300 70 570 11
    1901031 8717365008535 1,5 VHS-1.5 350 70 725 12
    1901131 8717365163296 1,5 VHS-R-1.5 350 70 725 12
    1902033 8717365008603 3 KBH-3.0 300 75 570 18
    1902133 8717365163340 3 KBH-R-3.0 300 75 570 18
    1901033 8717365008542 3 VHS-3.0 350 75 725 20
    1901133 8717365163302 3 VHS-R-3.0 350 75 725 20
    1902035 8717365008610 5 KBH-5.0 300 70 600 22
    1902135 8717365163357 5 KBH-R-5.0 300 70 600 22
    1901035 8717365008559 5 VHS-5.0 300 70 725 25
    1901135 8717365163319 5 VHS-R-5.0 300 70 725 25
    1902040 8717365008627 10 KBH-10.0 300 80 650 38
    1902140 8717365163364 10 KBH-R-10.0 300 80 650 38
    1901040 8717365008566 10 VHS-10.0 300 90 800 40
    1901140 8717365163326 10 VHS-R-10.0 300 90 800 40
