Properties

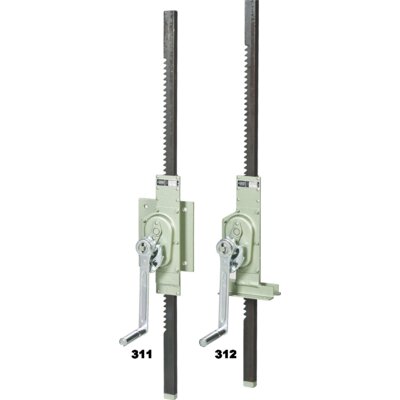

  • Series 311 is supplied with rear plate.
  • Series 312 is supplied with foot plate.
  • Safety crank with foldable handle.
  • Marking: According to standard, CE-marked
  • Standard: EN 12100, EN 13157, DIN-EN 7355
    Select a row from the table below, then click the add to quote button
    Part Code Code WLL Model Lifting height max
    mm
    Construction height
    mm
    Weight
    2218001 8717365009020 1,5 311-1.5 800 1 150 14
    2219001 8717365009051 1,5 312-1,5 800 1 150 14
    2218003 8717365009037 3 311-3.0 800 1 260 24
    2219003 8717365009068 3 312-3.0 800 1 260 24
    2218005 8717365009044 5 311-5.0 800 1 280 32
    2219005 8717365021589 5 312-5.0 800 1 280 32
