Properties

  • Spherical foot reduces the lateral pressure.
  • Protection against overload by overpressure valve.
  • Can be used from -20 ° to + 70 ° C.
  • Marking: According to standard, CE-marked
  • Standard: DIN 76024, EN 12100, EN 13157
Select a row from the table below, then click the add to quote button

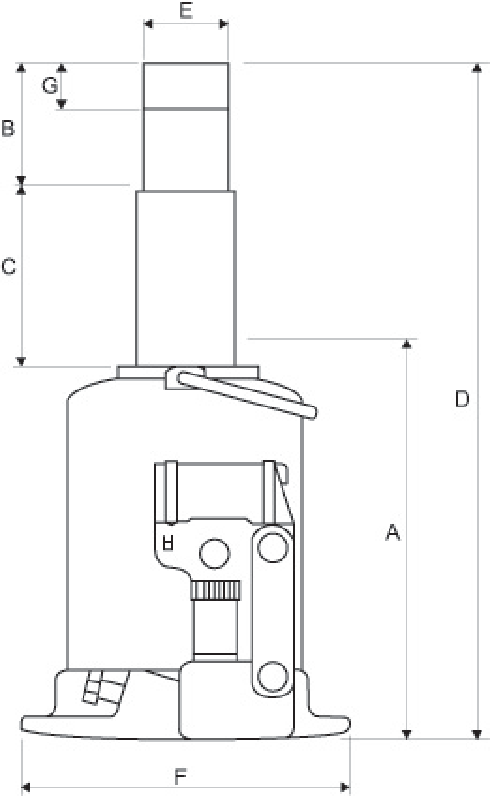

Part Code Code WLL
ton
Model A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
Weight
kg
2707008 8717365013065 10 ATD10-120 120 - 110 230 39,5 164 x 160 45 6,9
