Properties

  • Compact and stable construction.

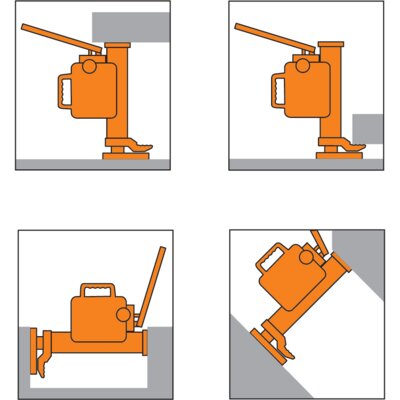

  • Usable in any position.
  • Very low foot.
  • The housing can be rotated through 360 °.
  • Accurate adjustment of the lowering speed.
  • prevented from overload.
  • Patented construction.
  • The pump handle is detachable.

Application

  • designed for repair, maintenance and mounting of heavy machines.

IMPORTANT:

  • Never exceed the safe working load of the machine lifter.
  • Never subject the claw to point loading, always fully load.
  • Never add an additional load with a raised load.
  • Do not use in unstable and uncertain positions.
  • Use only with a flat surface that can carry the load.
  • The load must be stable during lifting.
  • Do not use machine lifters that are in bad condition or damaged.
  • Ensure that the machine lifters are inspected and approved by a competent authority every year.
  • It is not allowed to lift people with machine lifters.
  • Marking: According to standard, CE-marked
  • Standard: EN 12100, EN 13157
Select a row from the table below, then click the add to quote button
Part Code Code WLL Model Maximum hand force
on crank kg
Weight

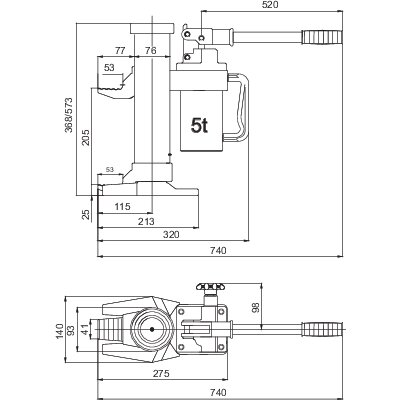

1800050 8717365020377 5 RMH-50 38 25

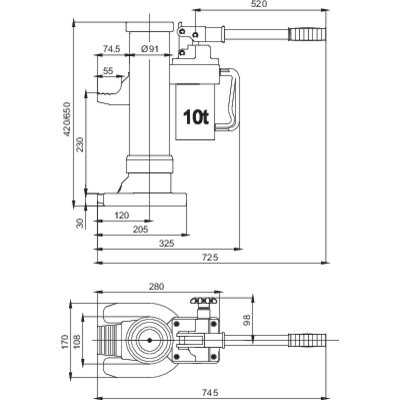

1800100 8717365008498 10 RMH-100 40 35

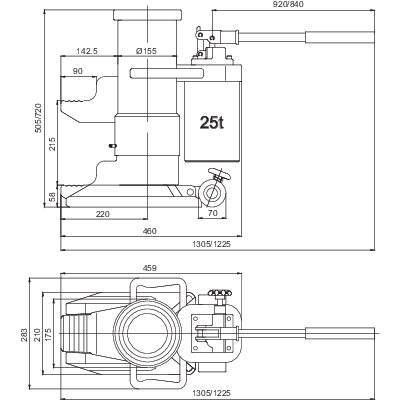

1800250 8717365008504 25 RMH-250 40 102

info / downloads
