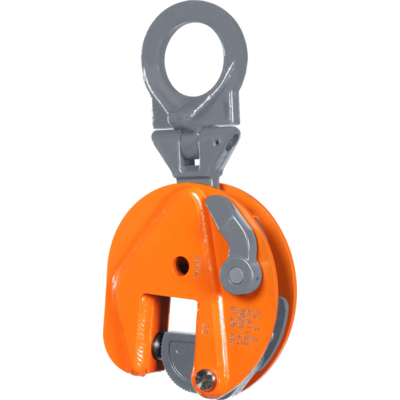

Lifting clamps for safely transporting steel plates in vertical position.

Properties

  • Equipped with universal lifting eye, movable in two directions.
  • Always equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered.
  • WLL and size of the jaw opening are clearly indicated on the clamp.
  • Safety factor of at least 5 x WLL.
  • Each clamp is 2x WLL testloaded.

Application

  • For lifting steel plates up to a hardness of 37 RC (345 HB).
  • Suitable for lifting, 180 ° turning and vertical transport of steel plates.
  • Marking: According to standard, CE-marked
  • Standard: EN 13155, EN 12100
  • Note: Minimum weight to be lifted is 10% of the safe workload.
    Select a row from the table below, then click the add to quote button

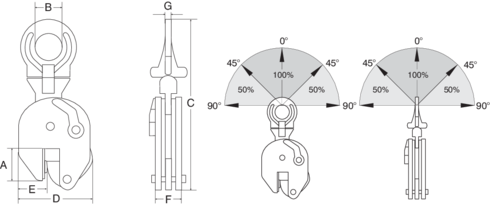

    Part Code Code WLL
    ton
    Jaw width
    mm
    Model A
    mm
    B
    mm
    C
    mm
    D
    mm
    E
    mm
    F
    mm
    G
    mm
    Weight
    kg
    3362001 8717365015694 0,75 0-13 CU-0.75 47 30 203 100 35 37 10 1,7
    3362002 8717365261879 1 0-25 CUE-1.0 55 50 295 125 38 47 14 3,9
    3363002 8717365015724 2 0-35 CU-2.0 80 70 370 185 55 56 16 7,3
    3363003 8717365020391 3 0-35 CU-3.0 80 70 370 185 55 56 16 8
    3363004 8717365015731 4 0-45 CU-4.0 85 70 430 230 60 78 20 17
    3363006 8717365015748 6 0-50 CU-6.0 114 78 527 255 78 78 32 22
    3363009 8717365015755 9 0-55 CU-9.0 112 78 565 267 70 86 45 30
    3363013 8717365015762 12 0-52 CU-12.0 148 85 650 295 100 94 48 44
    3363015 8717365015779 15 0-76 CU-15.0 159 85 765 373 136 106 48 75
