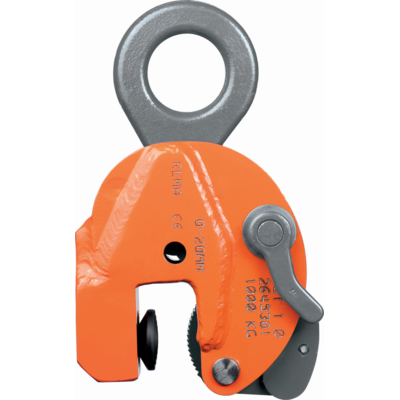

For vertical lifting and transporting (thin) sheet metal. Special movable pivot in the clamp provide extra pressure on the material, eliminating the risk of slippage.

  • Features: Movable pivot
  • Marking: According to standard, CE-marked
  • Standard: EN 13155, EN 12100
  • Safety factor: 5
Select a row from the table below, then click the add to quote button
Part Code Code WLL Model Jaw opening
mm
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
Weight
3364000 8717365105135 0,25 CBT-0.25 0-13 53 30 200 110 50 38 10,5 1,85
3364001 8717365261824 1 CBT-1 0-20 57 45 258 138 50 47 15 4
