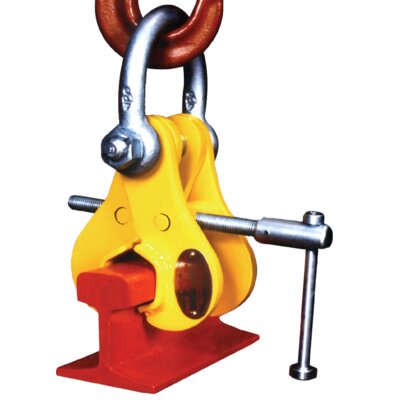

Developed for standard rail sections, the ‘SUPERCLAMP’ rail lifting clamp provides a reliable and secure grip on the rail when tightened.
Its light weight, versatile adjustability and low maintenance requirements makes this ‘SUPERCLAMP’ product a popular unit for all engaged in rail construction, rail maintenance and rail manufacture.

Properties

  • For rail-laying, rail maintenance and rail manufacturing
  • Marking: According to standard, CE-marked
  • Standard: EN 13157, EN 12100
Select a row from the table below, then click the add to quote button
Part Code Code Model Jaw opening
mm
A
mm
B
mm
C
mm
D
mm
E
mm
G
mm
H
mm
K
mm
Weight
3510001 8717365017063 R1 113 90 85 6 130 20 275 277 192 6
3510003 8717365017070 R2 113 116 110 12,5 130 25 275 311 192 9,5

info / downloads
