Properties

  • The clamp is locked in the open position.
  • To perform lifting, the operator must lift the handle while the force on the lifting eye is being applied.
  • When laying down the load, the clamp automatically opens.

Application

  • For horizontal lifting and transporting of tubes, pipes, tube bundles, rolls and other solid round materials.
  • Marking: According to standard, CE-marked
  • Standard: EN 12100, EN 13155
    Select a row from the table below, then click the add to quote button

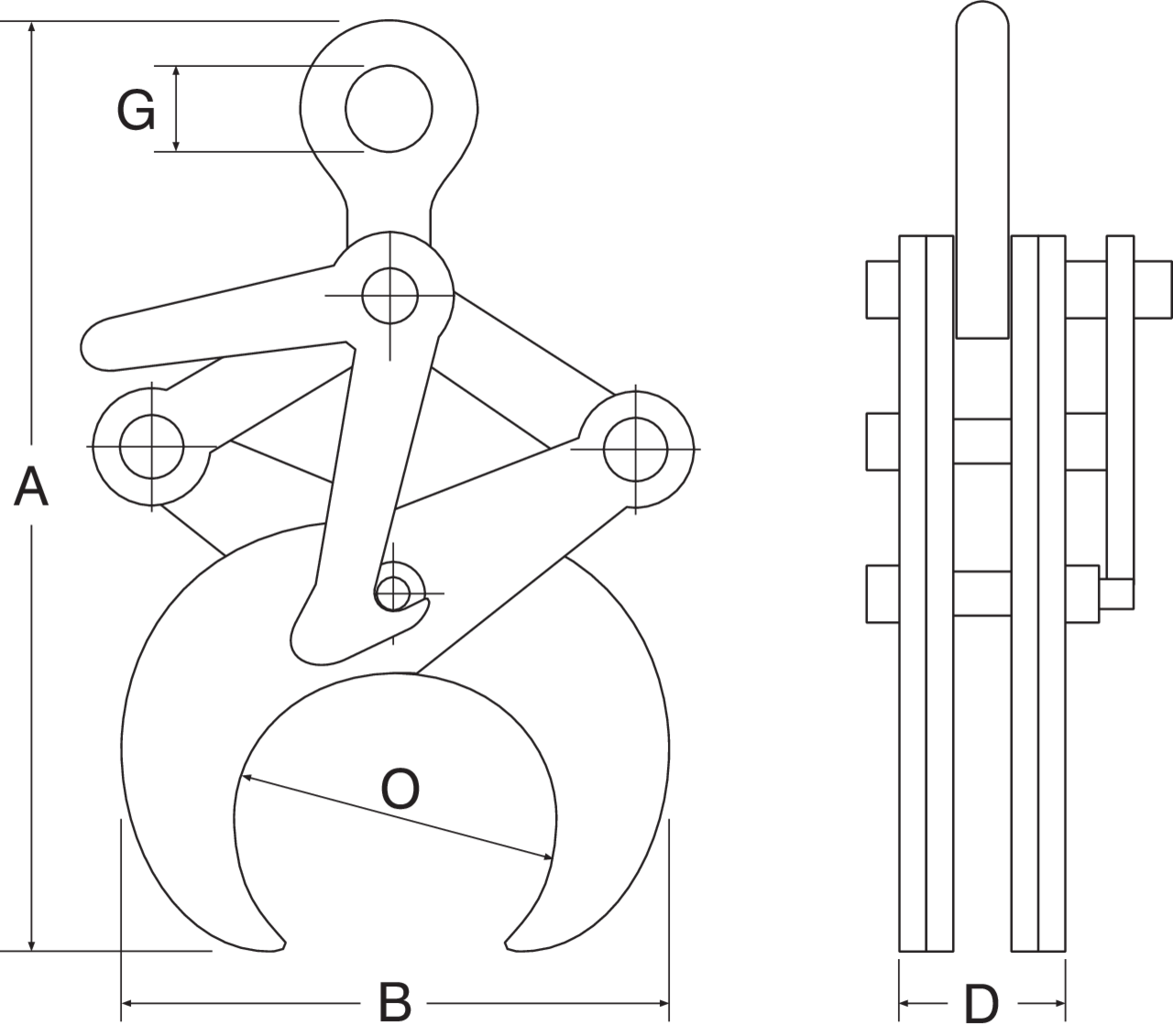

    Part Code Code WLL Jaw width
    mm
    Model O
    mm
    A
    mm
    B min-max
    mm
    D
    mm
    G
    mm
    Weight
    3311001 8717365015106 0,5 146-207 CRK-0.5 49-114 300-400 146-207 47 45 4,5
    3311003 8717365015113 1 110-170 CRK-1.0 114-219 430-615 110-170 47 45 9
    3311005 8717365015120 2 225-320 CRK-2.0 219-368 670-955 225-320 56 65 31
    3311007 8717365015137 3 590-710 CRK-3.0 368-508 875-1165 590-710 56 65 39
