Properties

  • Jaw is covered with a special high quality pressure resistant plastic.
  • These hooks must always be used in pairs.

Application

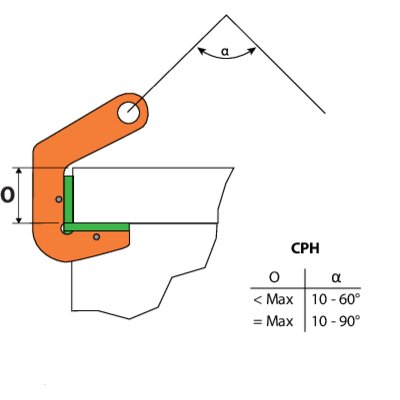

  • For horizontal lifting and transporting of steel and concrete pipes without damaging the product.
  • Features: WLL = per pair
  • Marking: According to standard, CE-marked
  • Standard: EN 13155, EN 12100
  • Note: Exclusive fasteners.
    Select a row from the table below, then click the add to quote button

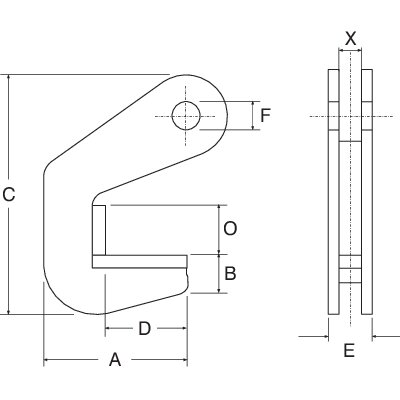

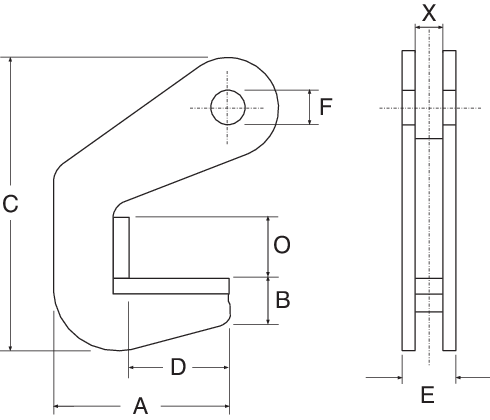

    Part Code Code WLL
    ton
    Jaw width
    mm
    Model A
    mm
    B
    mm
    C
    mm
    D
    mm
    E
    mm
    F
    mm
    O
    mm
    X
    mm
    Weight
    kg/pair
    3313025 8717365015304 1,5 40 CPH-1.5 120 32 185 70 41 16 40 23 3,2
    3313027 8717365015311 3 40 CPH-3.0 120 32 185 70 41 16 40 23 3,2
    3313029 8717365015328 4 50 CPH-4.0 140 58 180 70 41 26 50 23 6
    3313031 8717365015335 6 50 CPH-6.0 140 58 180 70 41 26 50 23 6
    3313033 8717365015342 8 70 CPH-8.0 140 58 200 70 45 26 70 25 7,2
    3313034 8717365023590 10 70 CPH-10.0 140 58 200 70 86 26 70 44 10
    3313035 8717365258725 12 70 CPH-12.0 140 58 200 70 86 26 70 44 12
    3313037 8717365258732 15 70 CPH-15.0 155 75 250 70 100 26 70 59 18
    3313039 8717365258749 20 70 CPH-20.0 155 75 250 70 100 26 70 59 20
