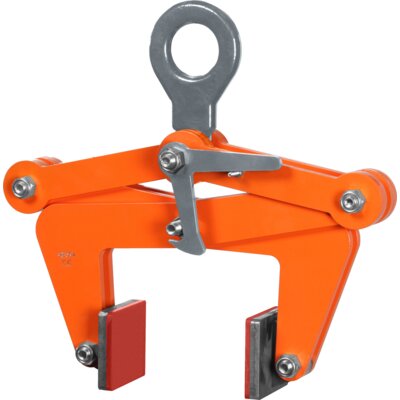

Properties

  • 2 special synthetic anti-friction pads to guarantee non-marking.
  • Lightweight design and easy to use.
  • Tough quality heavy duty body.
  • Maintenance-friendly, easy to exchange parts which are available upon request.

Application

  • For vertical lifting and transporting of all plates, blocks and structures with parallel sides without marking, scratching and or damaging the material surface.
  • Perfect for lifting materials such as (stainless) steel, aluminum, nature stone, composite, painted materials, wood, glass, plastic, etc.
  • The clamp is locked in the open position.
  • Marking: According to standard, CE-marked
  • Standard: EN 13155, EN 12100
  • Warning: The surface roughness of the material to be hoisted must have a minimum roughness of 25 µm or more rough.
    Select a row from the table below, then click the add to quote button

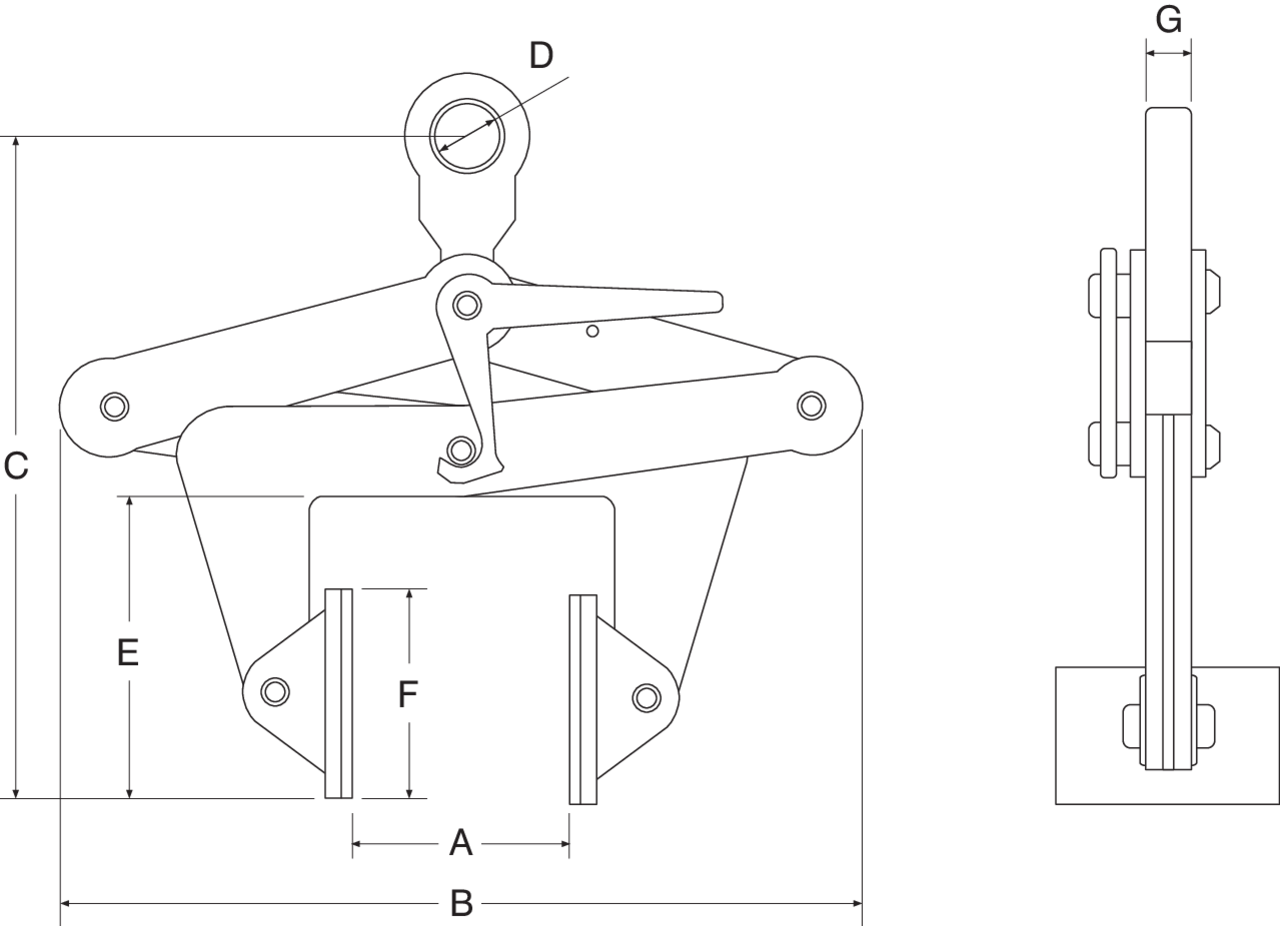

    Part Code Code WLL Jaw width
    mm
    Model A
    mm
    B
    mm
    C
    mm
    D
    mm
    E
    mm
    F
    mm
    G
    mm
    Weight
    3312013 8717365261558 0,5 270-325 CBKN-0.5 30-110 270-325 305-460 45 100 80 x 70 15 7
    3312015 8717365261565 1 425-530 CBKN-1.0 100-230 425-530 380-655 45 140 80 x 70 15 12
    3312017 8717365261572 2 580-675 CBKN-2.0 220-360 580-675 410-735 45 170 80 x 70 16 18
    3312019 8717365261589 3 725-835 CBKN-3.0 350-500 725-835 530-900 65 200 100 x 90 20 32
