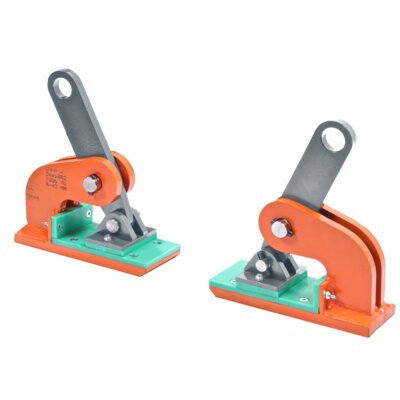

REMA horizontal clamps are for the safe transport of flat sheets where the surface may not be damaged eg stainless steel, aluminum, wood etc. The clamp and bed of the clamp are covered with a high-quality pressure-resistant plastic.

Application

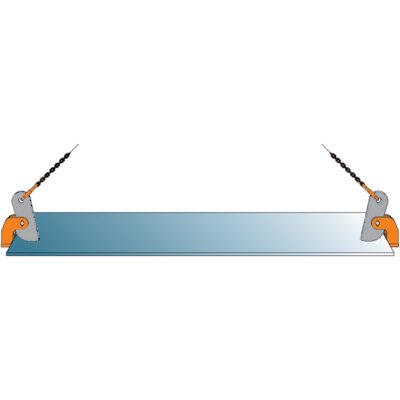

  • For the horizontal transport of stainless steel plates, various wooden panels, aluminum etc.
  • Marking: According to standard, CE-marked
  • Standard: EN 13155, EN 12100
Select a row from the table below, then click the add to quote button

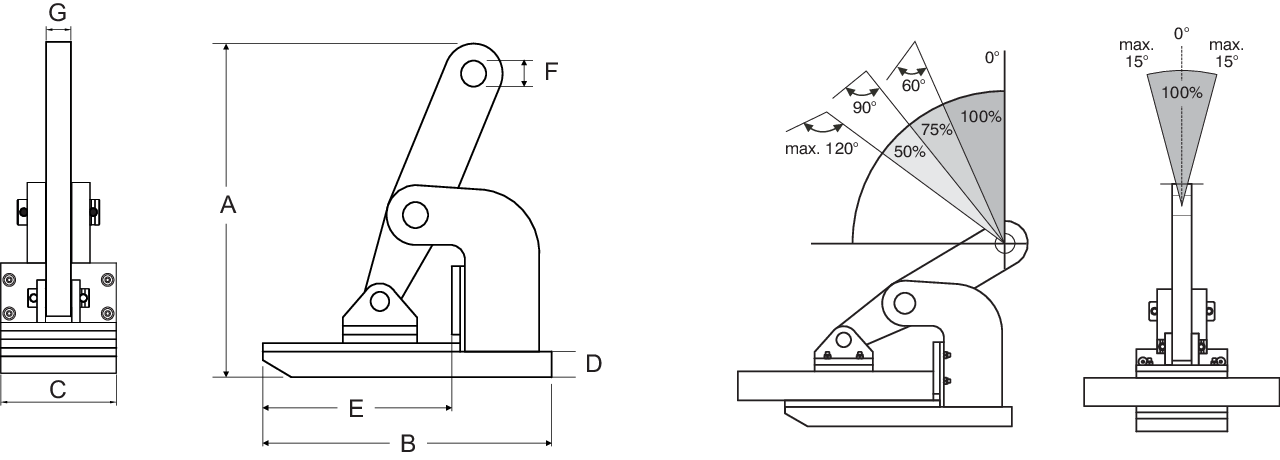

Part Code Code WLL Model Jaw opening
mm
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
Weight
kg/pair
3366001 8717365259111 1 CNMH-1 0-25 154 140 65 15 95 20 15 7/2
3366002 8717365259128 2 CNMH-2 0-45 270 225 90 23 150 30,5 15 18/2
3366003 8717365259135 3 CNMH-3 0-45 275 225 90 28 150 30,5 15 26/2
3366004 8717365259142 4 CNMH-4 0-50 305 250 105 28 160 30,5 20 32/2
3366006 8717365259159 6 CNMH-6 0-50 310 250 120 33 160 30,5 20 34/2
