Home / Products / Lifting clamps / Horizontal lifting clamps / CHV horizontal adjustable lifting clamps

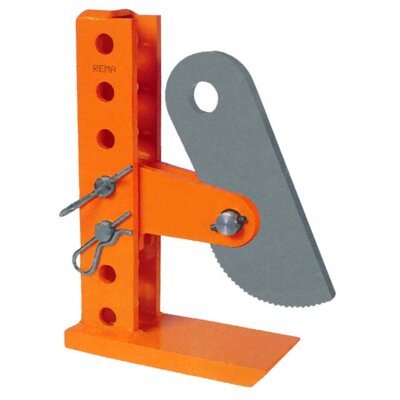

CHV horizontal adjustable lifting clamps

Adjustable lifting clamp for safe lifting and moving of packages and single plates in horizontal position. Always use these clamps per pair.

  • Marking: According to standard, CE-marked
  • Standard: EN 13155, EN 12100
  • Safety factor: 5
CHV horizontal adjustable lifting clamps
Select a row from the table below, then click the add to quote button

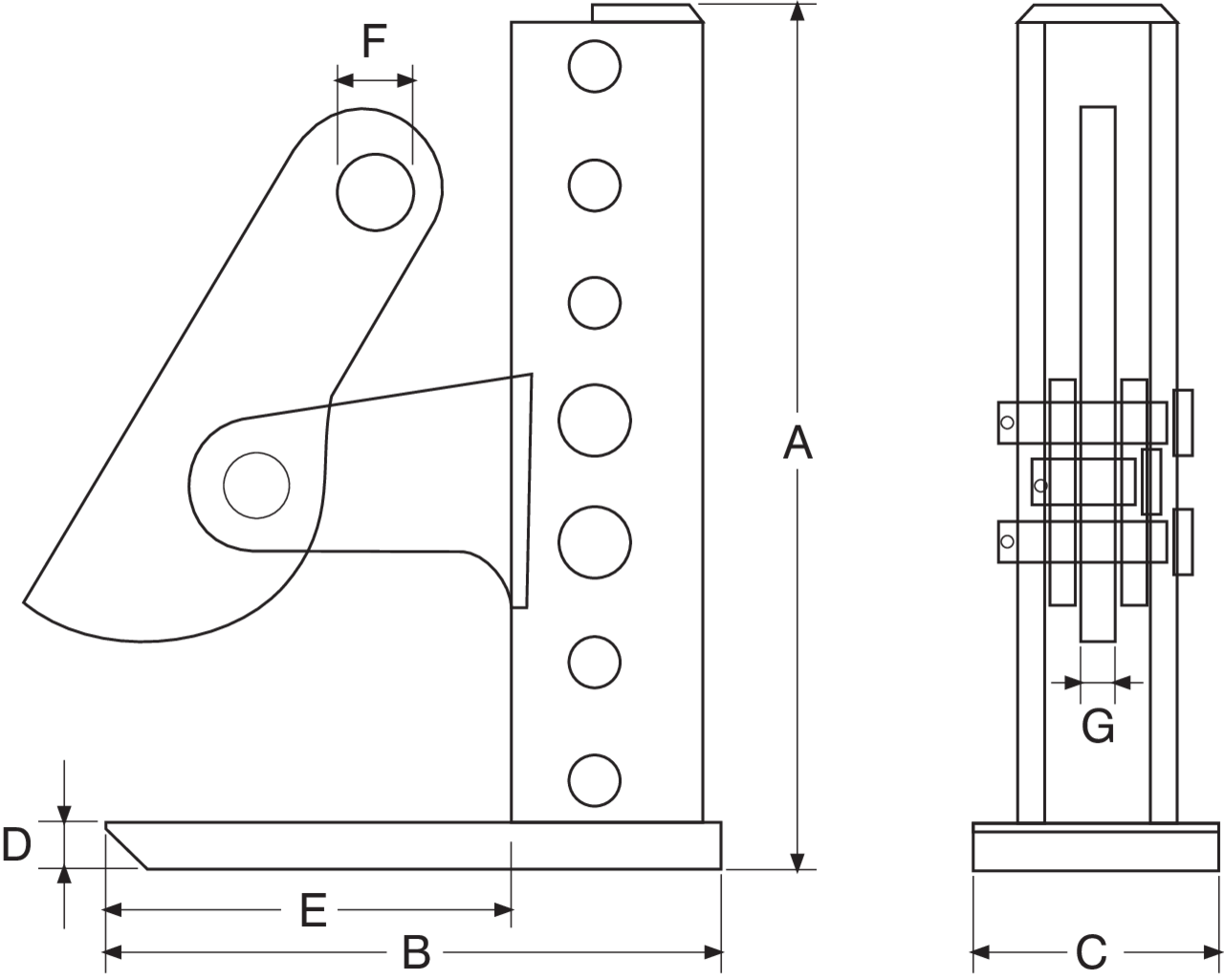

Part Code Code WLL
ton		 Jaw width
mm		 Model A
mm		 B
mm		 C
mm		 D
mm		 E
mm		 F
mm		 G
mm		 Weight
kg/pair
3315011 8717365015441 1,5 3-180 CHV-1.5 290 200 90 15 135 30 20 18/2
3315013 8717365015458 1,5 3-300 CHV-1.5X 410 200 90 15 135 30 20 23/2
3315015 8717365015465 3 3-180 CHV-3.0 300 235 105 20 165 30 20 29/2
3315017 8717365015472 3 3-300 CHV-3.0X 410 235 105 20 165 30 20 31/2
3315019 8717365015489 4,5 3-180 CHV-4.5 300 235 105 20 165 30 20 32/2
3315021 8717365015496 4,5 3-420 CHV-4.5X 535 235 105 20 170 30 20 34/2
3315023 8717365015502 6 3-180 CHV-6.0 305 250 120 25 160 30 20 40/2
3315025 8717365015519 6 3-420 CHV-6.0X 540 250 120 25 165 30 20 46/2
3315027 8717365015526 9 3-180 CHV-9.0 305 250 120 25 160 30 20 51/2
3315029 8717365015533 9 3-420 CHV-9.0X 540 250 120 25 165 30 20 60/2
