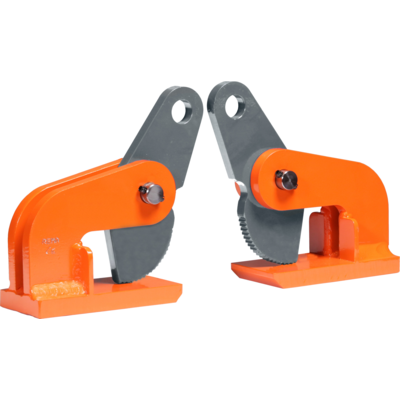

HT lifting clamps with reverse segments for safe transportation of thin steel plates sagging during lifting.

Properties

  • Always use per pair.
  • WLL and the size of the jaw opening are clearly marked on the clamp.
  • Safety factor of at least 5 x WLL.
  • Each clamp is 2 x WLL test load.

Application

  • For lifting thin sheet steel plates in horizontal position to a hardness of 37RC (345 HB).
  • Marking: According to standard, CE-marked
  • Standard: EN 12100, EN 13155
    Select a row from the table below, then click the add to quote button
    Part Code Code WLL
    ton
    Jaw width
    mm
    Model A
    mm
    B
    mm
    C
    mm
    D
    mm
    E
    mm
    F
    mm
    G
    mm
    Weight
    kg/pair
    3309001 8717365015069 1 0-15 CHT-1.0 0-15 85 10 22,5 99 140 65 5/2
    3309002 8717365015076 2 0-35 CHT-2.0 0-35 135 20 26 114 180 90 16/2
