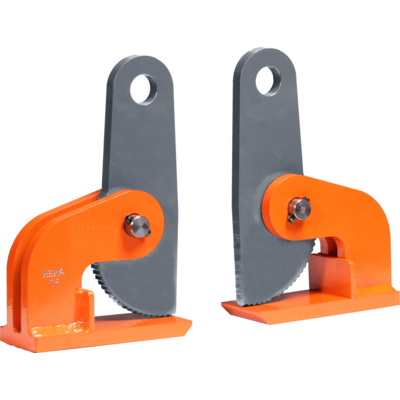

Lifting clamps for safe transportation of steel plates in horizontal position. For hoisting steel plates up to hardness 37 RC (345 HB).

Properties

  • WLL and size of the jaw opening are clearly indicated on the clamp.
  • Suitable for hoisting and horizontal transport of steel plates that do not bend.
  • These clamps can also be applied under a lifting frame or chain sling.
  • Always use in pair.
  • Low weight and compact design.
  • Safety factor of at least 5 x WLL.
  • Each clamp is 2 x WLL testloaded.

Application

  • For lifting steel plates up to hardness 37 RC (345 HB).
  • For the safe transport of steel plates in horizontal position.
  • Marking: According to standard, CE-marked
  • Standard: EN 13155, EN 12100
  • Safety factor: 5
Select a row from the table below, then click the add to quote button

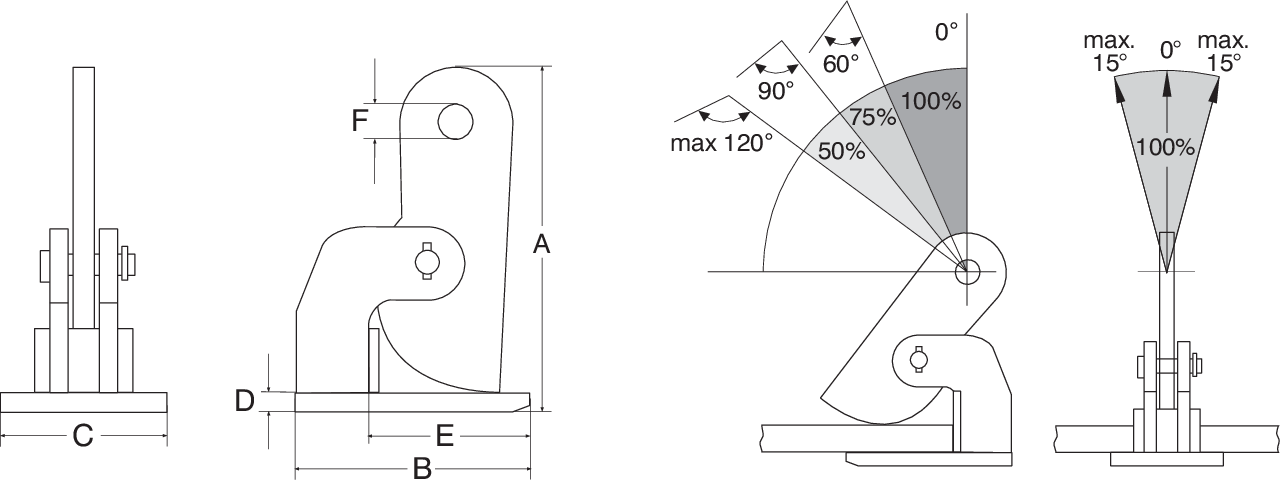

Part Code Code WLL Model Jaw opening
mm
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
Weight
kg/pair
3365001 8717365015786 1 CH-1.0 0- 35 188 140 65 10 100 25 5.2/2
3365002 8717365015793 2 CH-2.0 0- 60 290 180 90 15 115 31 15/2
3365004 8717365015809 4 CH-4.0 0- 60 306 220 105 25 145 31 26/2
3365006 8717365015816 6 CH-6.0 0- 60 306 220 110 25 145 31 26/2
3365008 8717365015823 8 CH-8.0 0- 60 335 225 120 35 135 31 36/2
3365010 8717365015830 10 CH-10.0 0- 60 335 225 120 35 135 31 40/2
3365102 8717365015847 2 CH-2.0/L 0-100 380 180 90 15 120 31 18/2
3365104 8717365015854 4 CH-4.0/L 0-100 415 220 105 25 145 31 30/2
3365106 8717365015861 6 CH-6.0/L 0-100 415 220 120 25 145 31 32/2
3365108 8717365015878 8 CH-8.0/L 0-100 430 225 120 35 135 31 44/2
3365110 8717365015885 10 CH-10.0/L 0-100 430 225 120 35 135 31 46/2
