Lifting clamps for safely transporting steel plates in vertical position.

Properties

  • Equipped with universal lifting eye, movable in two directions.
  • Always equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered.
  • WLL and size of the jaw opening are clearly indicated on the clamp.
  • Safety factor of at least 5 x WLL.
  • Each clamp is 2x WLL testloaded.

Application

  • For lifting steel plates up to a hardness of 37 RC (345 HB).
  • Suitable for lifting, 180 ° turning and vertical transport of steel plates.
  • Marking: According to standard, CE-marked
  • Standard: EN 13155, EN 12100
  • Note: Minimum weight to be lifted is 10% of the safe workload.
Select a row from the table below, then click the add to quote button

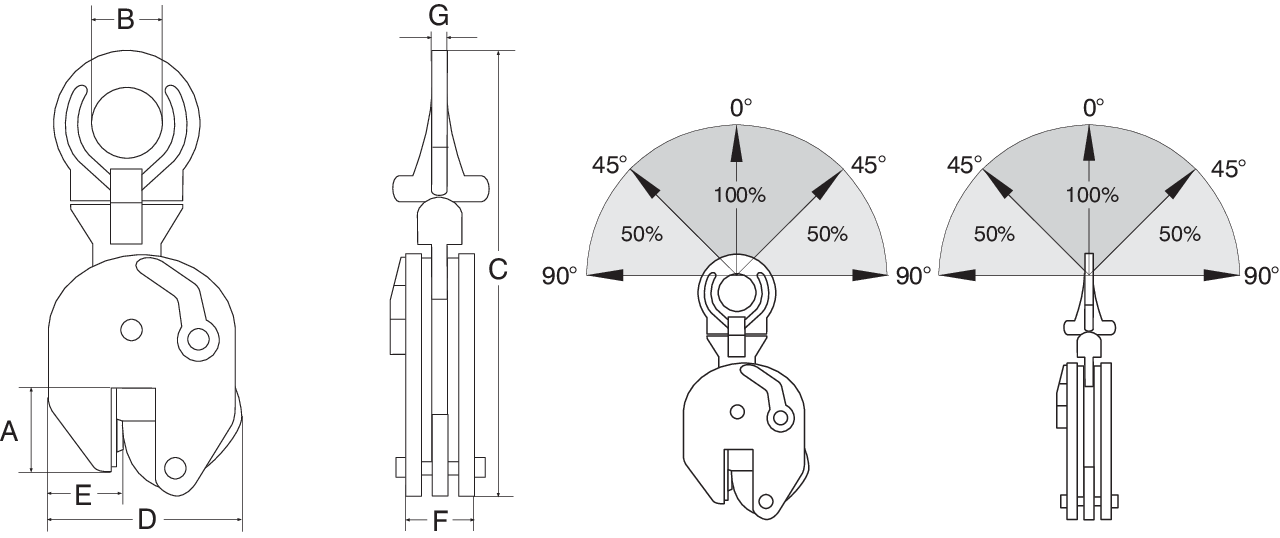

Part Code Code WLL Model Jaw opening
mm
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
Weight
3362001 8717365015694 0,75 CU-0.75 0-13 47 30 203 100 35 37 10 1,7
3362002 8717365261879 1 CUE-1.0 0-25 55 50 295 125 38 47 14 3,9
3363002 8717365015724 2 CU-2.0 0-35 80 70 370 185 55 56 16 7,3
3363003 8717365020391 3 CU-3.0 0-35 80 70 370 185 55 56 16 8
3363004 8717365015731 4 CU-4.0 0-45 85 70 430 230 60 78 20 17
3363006 8717365015748 6 CU-6.0 0-50 114 78 527 255 78 78 32 22
3363009 8717365015755 9 CU-9.0 0-55 112 78 565 267 70 86 45 30
3363013 8717365015762 12 CU-12.0 0-52 148 85 650 295 100 94 48 44
3363015 8717365015779 15 CU-15.0 0-76 159 85 765 373 136 106 48 75
