Model REMA YA lever hoist is a robust lever hoist suitable for lifting, pulling, spanning and clamping in any directions.

Properties

  • Grade 8 Galvanized load chain with high tensile strength (EN 818/7).
  • Compact construction and very low self-weight.
  • Reliable self-locked brake which will retain the load at every required height.
  • Hooks provided with safety latches.
  • In case of overload, the hooks will gradually bend and do not suddenly break off.
  • Patented guide for the load chain.
  • A double spring on each catch for additional safety.

Standard delivery

  • 1,5 m lifting height (max distance between top and bottom hookpositions).

Option

  • Available in other lifting heights.
  • Marking: According to standard, CE-marked
  • Standard: EN 818-7, EN 13157
Select a row from the table below, then click the add to quote button

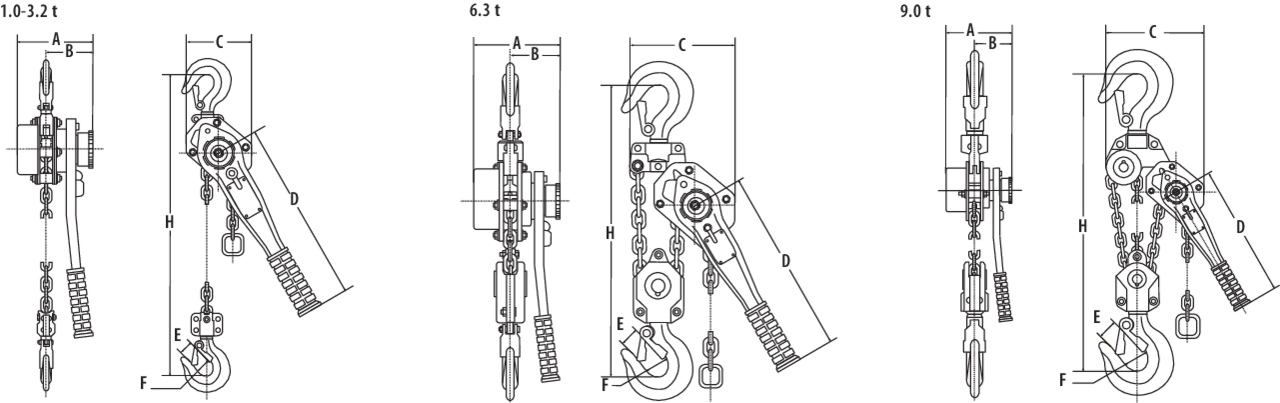

Part Code Code WLL
kg
Lifting height
m
Model Load Chain dia x pitch
mm
Maximum hand force
on crank kg
Chain falls Construction height
mm
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
H
mm
Weight
kg
0208003-1,5M 8717365258794 1 1,5 YA/1000KG/1,5M 5.6 x 17.1 37 1 312 144 91 122 268 28 43 312 6,2
0208003-3M 8717365163715 1 3 YA/1000KG/3M 5.6 x 17.1 37 1 312 144 91 122 268 28 43 312 7,3
0208003-4.5 8717365264672 1 4,5 YA/1000KG/4,5M 5.6 x 17.1 37 1 312 144 91 122 268 28 43 312 8,4
0208003-6 8717365264689 1 6 YA/1000KG/6M 5.6 x 17.1 37 1 312 144 91 122 268 28 43 312 9,5
0208005-1,5M 8717365258817 1,6 1,5 YA/1600KG/1,5M 7.1 x 21 30 1 352 162 99 136 310 29 43 352 9,5
0208005-3M 8717365163722 1,6 3 YA/1600KG/3M 7.1 x 21 30 1 352 162 99 136 310 29 43 352 11,3
0208005-4.5 8717365264702 1,6 4,5 YA/1600KG/4,5M 7.1 x 21 30 1 352 162 99 136 310 29 43 352 13,1
0208005-6 8717365264719 1,6 6 YA/1600KG/6M 7.1 x 21 30 1 352 162 99 136 310 29 43 352 14,9
0208007-1,5M 8717365260032 3,2 1,5 YA/3200KG/1,5M 9.0 x 27.2 37 1 420 186,5 104 180 310 36 53 420 15,5
0208007-3M 8717365163739 3,2 3 YA/3200KG/3M 9.0 x 27.2 37 1 420 186,5 104 180 310 36 53 420 18,2
0208007-4.5 8717365264733 3,2 4,5 YA/3200KG/4,5M 9.0 x 27.2 37 1 420 186,5 104 180 310 36 53 420 20,9
0208007-6 8717365264740 3,2 6 YA/3200KG/6M 9.0 x 27.2 37 1 420 186,5 104 180 310 36 53 420 23,6
0208009-1,5M 8717365260056 6,3 1,5 YA/6300KG/1,5M 9.0 x 27.2 38 2 564 186,5 104 235 310 47 70 564 26,5
0208009-3 8717365264757 6,3 3 YA/6300KG/3M 9.0 x 27.2 38 2 564 186,5 104 235 310 47 70 564 32
0208009-4.5 8717365264764 6,3 4,5 YA/6300KG/4,5M 9.0 x 27.2 38 2 564 186,5 104 235 310 47 70 564 37,5
0208009-6 8717365264771 6,3 6 YA/6300KG/6M 9.0 x 27.2 38 2 564 186,5 104 235 310 47 70 564 43
0208011-1,5M 8717365260070 9 1,5 YA/9000KG/1,5M 9.0 x 27.2 39 3 589 186,5 104 300 310 73 85 689 42
0208011-3 8717365264788 9 3 YA/9000KG/3M 9.0 x 27.2 39 3 589 186,5 104 300 310 73 85 689 50,1
0208011-4.5 8717365264795 9 4,5 YA/9000KG/4,5M 9.0 x 27.2 39 3 589 186,5 104 300 310 73 85 689 58,2
0208011-6 8717365264801 9 6 YA/9000KG/6M 9.0 x 27.2 39 3 589 186,5 104 300 310 73 85 689 66,3
