The REMA Select 2 OD ratchet hoist with serial built-in overload device, except 250 kg *, for safe working during lifting, pulling, tensioning or lashing.

Properties

  • The innovative overload device ensures safer operation of the hoist.
  • Overload device system makes it possible to lower the load in a controlled way.
  • Overload device prevents dangerous overloading of the hoist and construction.
  • Low leverage at full load due to bearing.
  • Equipped with a double pawl system.
  • Brake fitted with asbestos free friction discs.
  • Load chain wheel is made of precision and wear-resistant alloy steel.
  • Freewheel is possible in unloaded condition.
  • Top and bottom swivel hook with robust safety latches.
  • In case of overload, the hooks will gradually bend and do not suddenly break off.
  • Galvanized load chain Grade 8.
  • Lever with REMA rubber anti-slip handle.
  • * = without overload protection.

Standard delivery

  • 1,5 m lifting height (max distance between top and bottom hook).
  • 250 kg without overload device.

Option

  • Available in other lifting heights.
  • Marking: According to standard, CE-marked
  • Standard: EN 818-7, EN 13157
  • Safety factor: 3
Select a row from the table below, then click the add to quote button

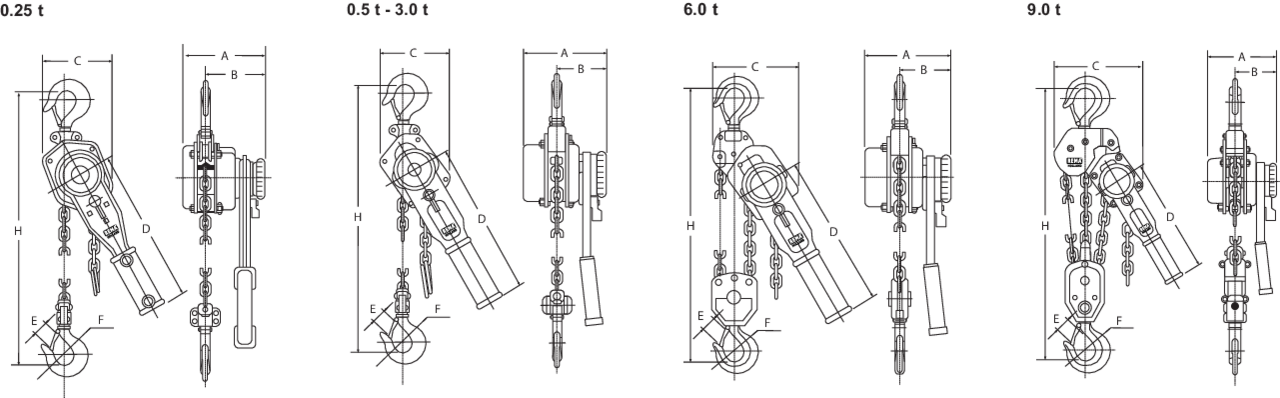

Part Code Code WLL
kg
Model Load Chain dia x pitch
mm
Maximum hand force
on crank kg
Chain falls Construction height
mm
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
H
mm
Weight
kg
0220000 8717365261718 250 S2-250KG* 4.0 x 12 28,2 1 235 100 70 86 163 20 31 235 2,5
0220001 8717365261725 500 S2OD-500KG 5.0 x 15.0 24,8 1 310 150 90 18 253 22 32 310 5,5
0220003 8717365261732 800 S2OD-800KG 5.6 x 17.0 26,5 1 340 158 98 132 273 26 36 340 6,5
0220005 8717365261749 1 600 S2OD-1600KG 7.1 x 21.0 29,5 1 400 185 111 145 378 29 43 400 10,2
0220007 8717365261756 3 200 S2OD-3200KG 10.0 x 28.0 33,5 1 520 212 124 198 418 37 50 520 22
0220009 8717365261763 6 300 S2OD-6300KG 10.0 x 28.0 37 2 640 212 124 230 418 43 53 640 34
0220011 8717365261770 9 000 S2OD-9000KG 10.0 x 28.0 42 3 730 212 124 338 418 44 67 730 45
