The standard length of C-rails for each profile sizes is appr. 6 m Orders shorter than 18 m are delivered in 3 m lengths for an easier transport.

Select a row from the table below, then click the add to quote button

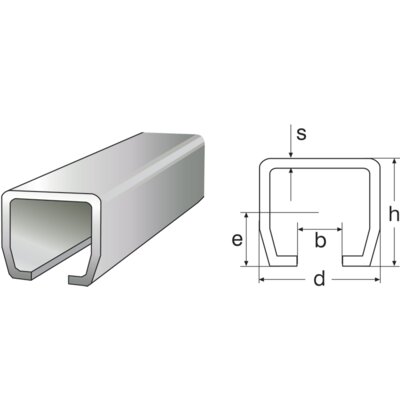

Part Code Code WLL
ton
Type B
mm
D
mm
E
mm
H
mm
S
mm
Weight
kg
4001001 8717365088940 0,08 PR100 8 30 15,8 28 1,75 1,3
4001003 8717365088957 0,1 PR300 11 40 19,8 35 2,75 2,5
4001005 8717365088964 0,2 PR400 15 48,5 24,8 43,5 3,2 3,8
