Properties

  • Very short assembly and disassembly time of a few minutes.

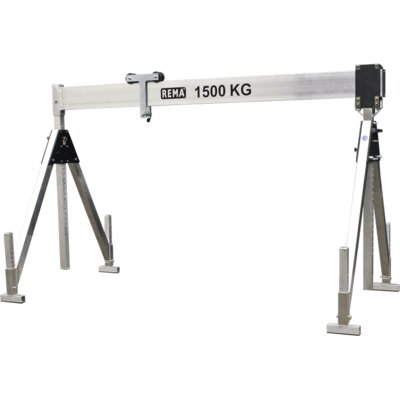

  • 3-part dismountable, two columns and a support beam.

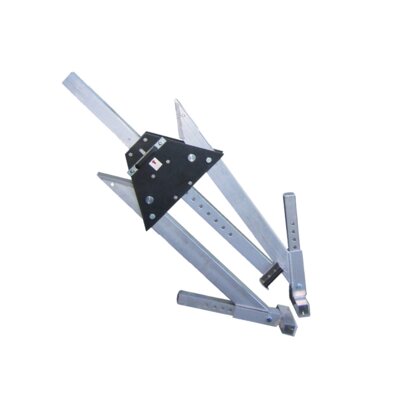

  • Foldable columns for easy transport.
  • Height adjustment, installation in low spaces is possible.
  • Adjustable span by one, movable, columns.
  • Very low own weight because the crane is made entirely of aluminum and plastic.

Applications

  • If a non-permanent lifting point has to be created quickly and easily.
  • Ideal for use when changing tools on machines or as an aid for repairs and replacement of parts, machines and pumps.

Standard delivery

  • Trolley included.
  • Exclusive hoist (see Chapter 1).

Option

  • Wall console for 1 side.
  • Mobile version (no load).
  • Other versions on request.
  • Material: Aluminium
  • Marking: According to standard, CE-marked
  • Standard: EN 12100, EN 13157, EN 15011
Select a row from the table below, then click the add to quote button
Part Code Code WLL Model Height
mm
Width
mm
Main beam length
mm
Weight
3940008 8717365023286 1,5 PKA-K-2 1180 - 2100 1 200 2 000 98
3940000 8717365020155 1,5 PKA-K-3 1180 - 2100 1 200 3 000 105
3940009 8717365023293 1,5 PKA-M-2 1680 - 3000 1 710 2 000 111
3940001 8717365020162 1,5 PKA-K-4 1180 - 2100 1 200 4 000 115
3940002 8717365020179 1,5 PKA-M-3 1680 - 3000 1 710 3 000 121
3940010 8717365023309 1,5 PKA-G-2 2230 - 4000 2 290 2 000 127
3940003 8717365020186 1,5 PKA-M-4 1680 - 3000 1 710 4 000 130
3940004 8717365020193 1,5 PKA-G-3 2230 - 4000 2 290 3 000 138
3940007 8717365259760 1,5 PKA-M-5 1680 - 3000 1 710 5 000 140
3940005 8717365020209 1,5 PKA-G-4 2230 - 4000 2 290 4 000 146
3940006 8717365020308 1,5 PKA-G-5 2230 - 4000 2 290 5 000 156
