Properties

  • Surface finish: zinc phosphate primer RAL 2004 (orange).
  • Capacity range labelling.
  • Black-and-yellow safetymarkings at beam ends.
  • Hooks equipped with safety latches.
  • High quality steel hooks grade 10.

Option

  • Sandblasting and painting in every RAL color.
  • Higher load capacity and bigger dimensions on request.
  • Marking: According to standard, CE-marked
  • Standard: EN 13155, EN 12100, EN 1677-1
Select a row from the table below, then click the add to quote button

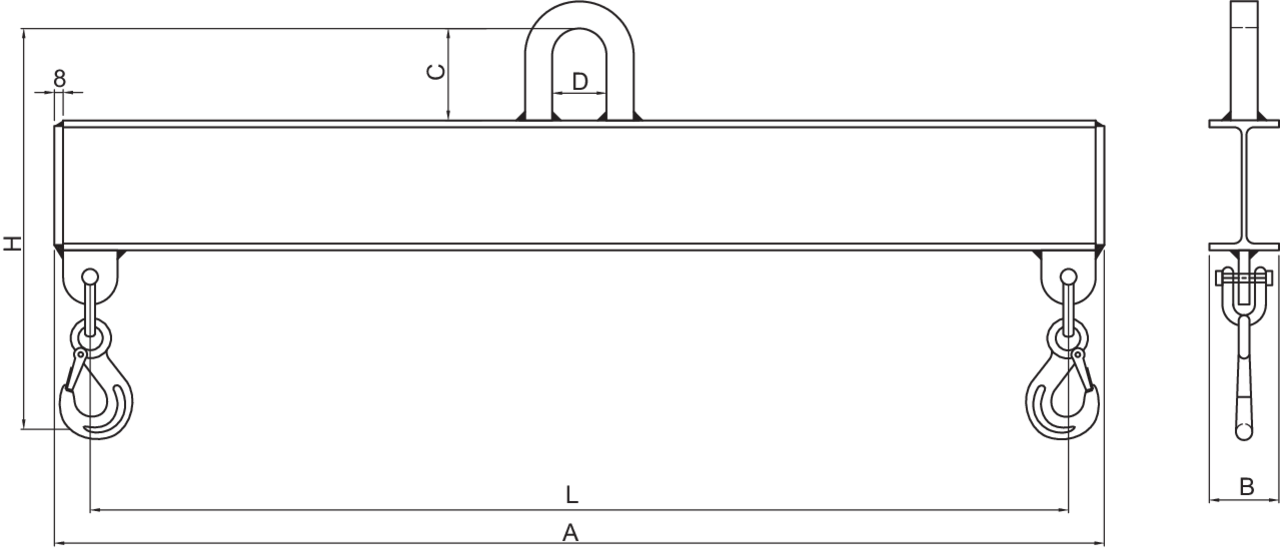

Part Code Code WLL Model A
mm
B1
mm
C
mm
D
mm
H
mm
L
mm
Weight
3962001 8717365017728 1 TRA-VA-1000-1M 1 070 65 85 55 380 1 000 13
3962003 8717365017735 1 TRA-VA-1000-1.6M 1 670 65 85 55 400 1 600 22
3962005 8717365017742 1 TRA-VA-1000-2.5M 2 570 75 85 55 420 2 500 38
3962007 8717365017759 1 TRA-VA-1000-3,15M 3 220 85 85 55 420 3 150 57
3962009 8717365017766 1,6 TRA-VA-1600-1,6M 1 690 75 85 55 480 1 600 27
3962011 8717365017773 1,6 TRA-VA-1600-2,5M 2 590 85 85 55 500 2 500 55
3962013 8717365017780 1,6 TRA-VA-1600-3,15M 3 240 90 85 55 520 3 150 78
3962015 8717365017797 1,6 TRA-VA-1600-4M 4 090 100 85 55 520 4 000 98
3962017 8717365017803 2,5 TRA-VA-2500-2,5M 2 590 90 85 70 540 2 500 68
3962019 8717365017810 2,5 TRA-VA-2500-3,15M 3 240 100 85 70 560 3 150 111
3962021 8717365017827 2,5 TRA-VA-2500-4M 4 090 110 85 70 580 4 000 138
3962023 8717365017834 2,5 TRA-VA-2500-5M 5 090 135 85 70 600 5 000 198
