Properties:

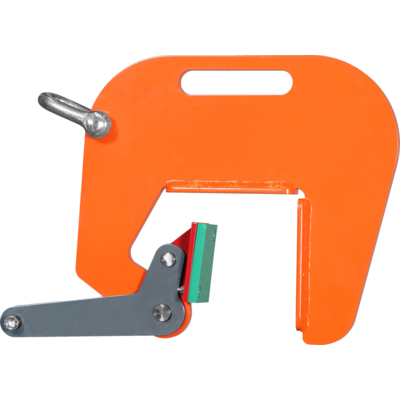

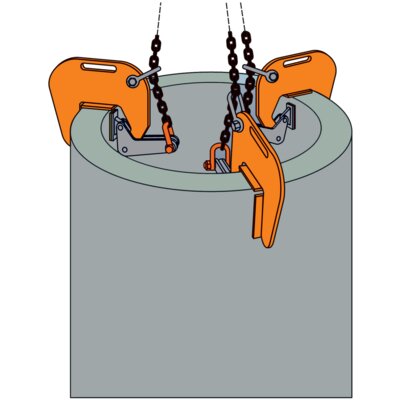

  • Specifically developed for safe lifting of concrete pipes in vertical position.
  • On special order supplied with chains and crane eyes.

Optional:

  • Lifting chain: 3-legs chain/8mm/RMA-8/C-link/1500mm
  • Marking: According to standard, CE-marked
  • Standard: EN 12100, EN 13155
  • Note: WLL and weight is allways per set of 3 pcs.
  • Warning: Always to be used per 3 pieces.
    Select a row from the table below, then click the add to quote button

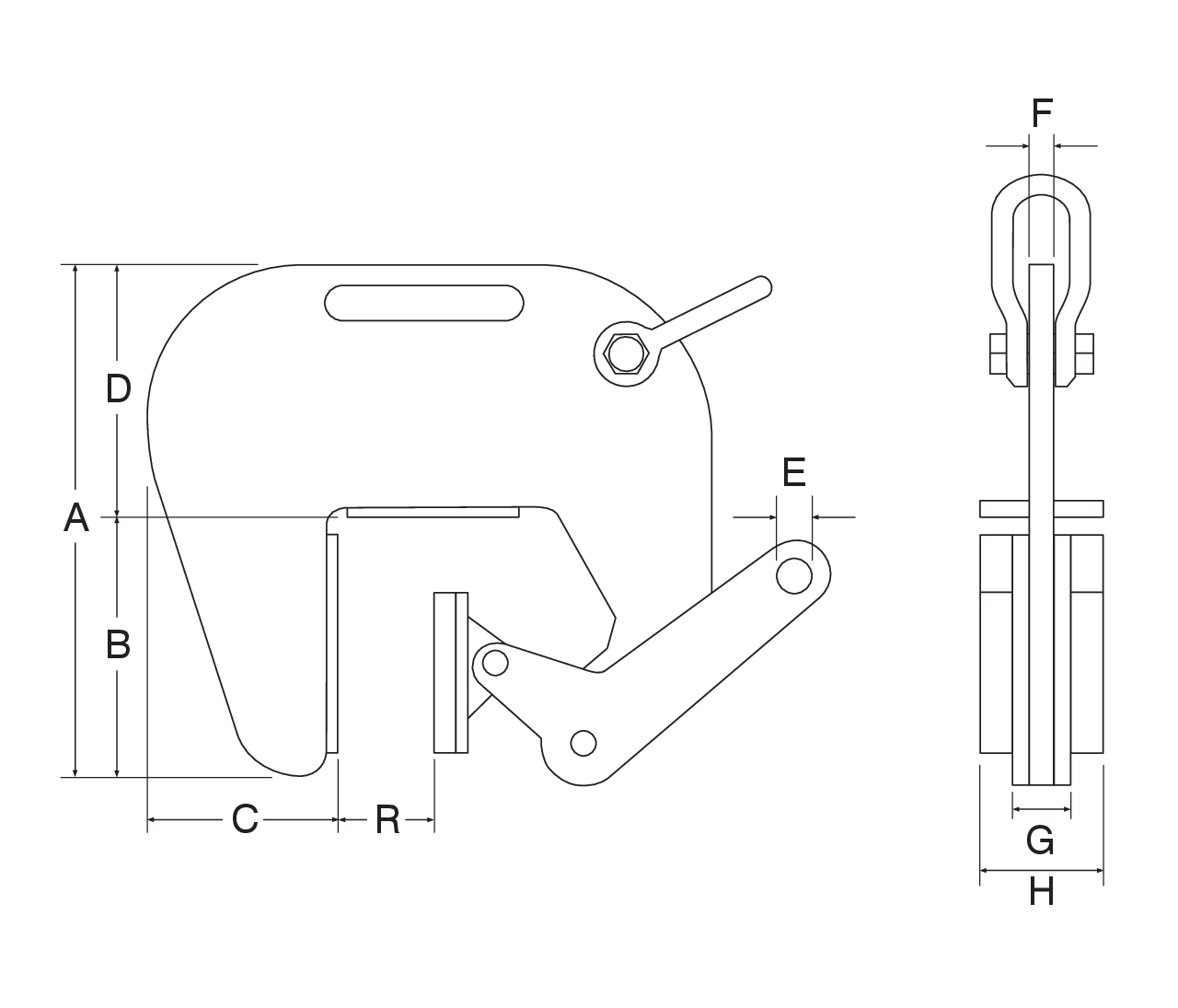

    Part Code Code WLL
    ton
    Jaw width
    mm
    Model A
    mm
    B
    mm
    C
    mm
    D
    mm
    E
    mm
    F
    mm
    G
    mm
    H
    mm
    R
    mm
    Weight
    kg
    3308007 8717365015038 1,5 60-120 CBA-1.5 320 170 110 160 12 12 40 60 60-120 30/3
    3308008 8717365015045 3 60-120 CBA-3.0 320 170 110 160 12 12 40 60 60-120 30/3
