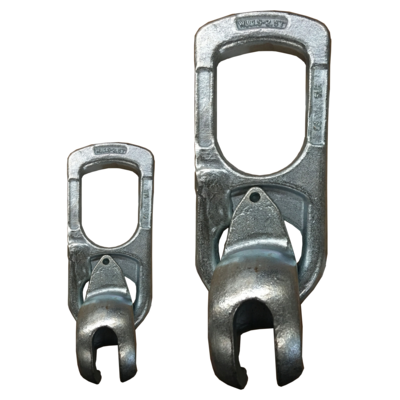

For lifting PREFAB concrete plates.

  • Marking: According to standard, CE-marked
  • Standard: EN 12100, EN 13155
    Select a row from the table below, then click the add to quote button

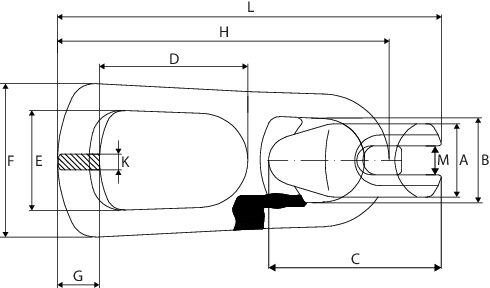

    Part Code Code WLL MBL
    ton
    Model A
    mm
    B
    mm
    C
    mm
    D
    mm
    E
    mm
    F
    mm
    G
    mm
    H
    mm
    K
    mm
    L
    mm
    M
    mm
    Weight
    3010101 8717365258602 1,3 5,2 RBH-1.3 34 42 80,4 70,5 45 73 20,5 157 12,5 186 11,5 0,89
    3010103 8717365258619 2,5 10 RBH-2.5 42 49 99 85 57 88 27 190 14 227 16 1,3
    3010105 8717365258626 5 20 RBH-5 55 70 133 88 69 110 35 233 18 282 22 3,24
    3010107 8717365258633 10 40 RBH-10 74 92 176 116 83 161 51 336,5 27 391 30 10,01
    3010109 8717365258640 20 80 RBH-20 110 114,5 228 133,5 107,5 182 77 437 31 497 42 20,37
