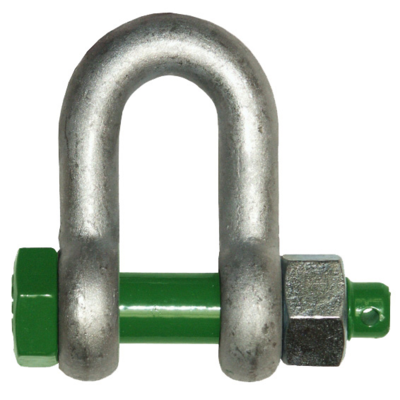

Galvanized steel with a high tensile strength suitable for temperatures between -20 ° C and + 200 ° C. Equipped with nut-bolt secured by split pin

  • Marking: According to standard, CE-marked
  • Standard: EN 13889
  • Safety factor: 6
  • Grade: 6
Select a row from the table below, then click the add to quote button

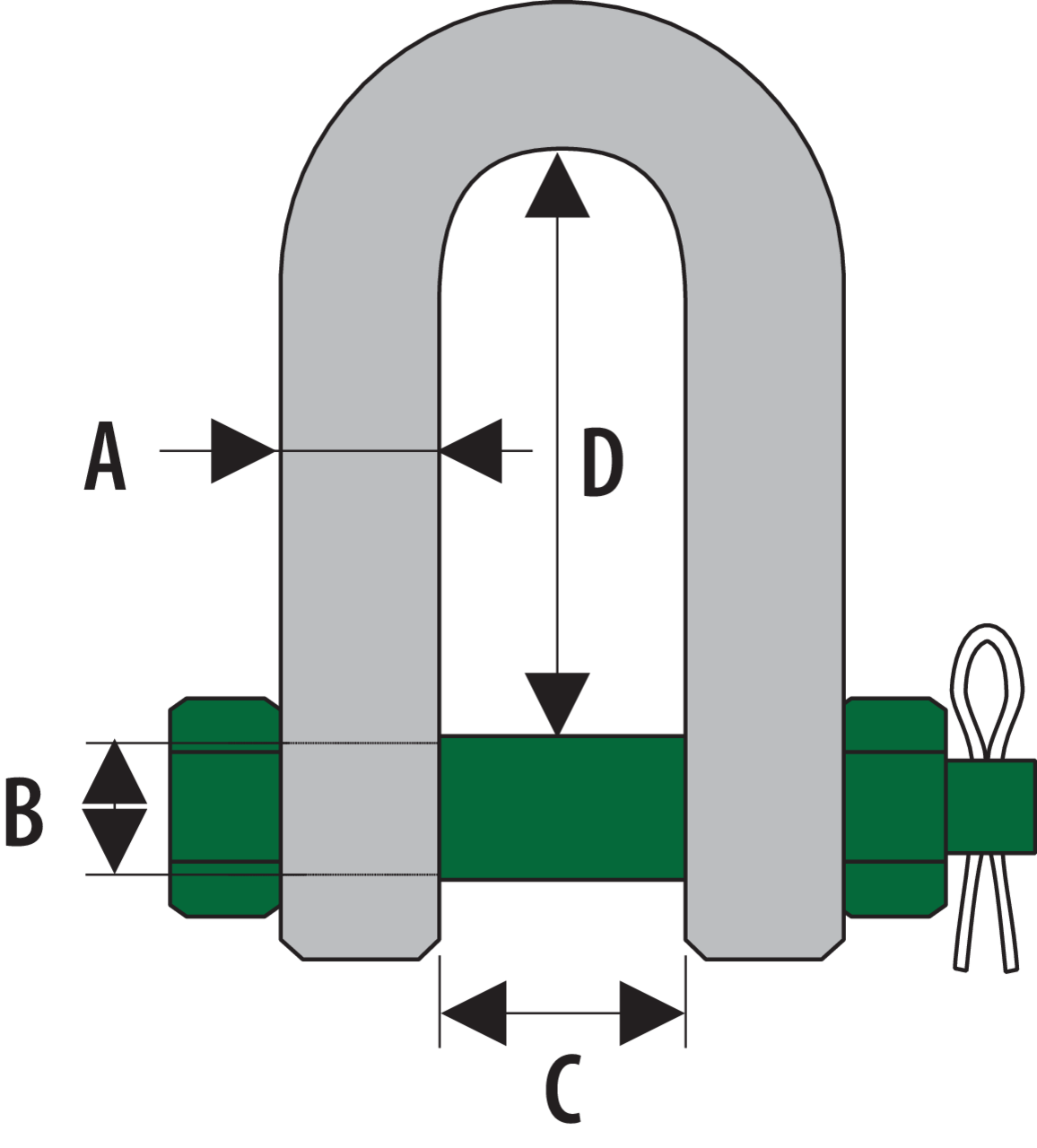

Part Code Code WLL Model A
mm
B
mm
C
mm
D
mm
Weight
3014009 8717365013751 2 G4153-1/2 13 16 22 43 0,37
3014011 8717365013768 3,25 G4153-5/8 16 19 27 51 0,65
3014013 8717365013775 4,75 G4153-3/4 19 22 31 59 1,06
3014015 8717365013782 6,5 G4153-7/8 22 25 36 73 1,56
3014017 8717365013799 8,5 G4153-1 25 28 43 85 2,32
3014019 8717365013805 9,5 G4153-1.1/8 28 32 47 90 3,28
3014021 8717365013812 12 G4153-1.1/4 32 35 51 94 4,51
3014023 8717365013829 13,5 G4153-1.3/8 35 38 57 115 5,93
3014025 8717365013836 17 G4153-1.1/2 38 42 60 127 7,89
3014027 8717365013843 25 G4153-1.3/4 45 50 74 149 13,4
3014029 8717365022999 35 G4153-2 50 57 83 171 16,86
3014031 8717365025792 42,5 G4153-2.1/4 57 65 95 190 24,56
3014033 8717365025808 55 G4153-2.1/2 65 70 105 203 32,65
