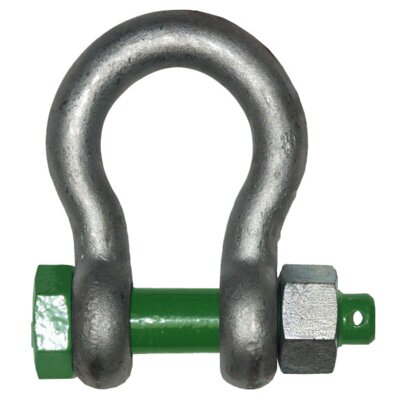

Galvanized steel with a high tensile strength suitable for temperatures between -20 ° C and + 200 ° C. Equipped with nut-bolt secured by split pin.

  • Marking: According to standard, CE-marked
  • Standard: EN 13889
  • Safety factor: 6
  • Grade: 6
Select a row from the table below, then click the add to quote button

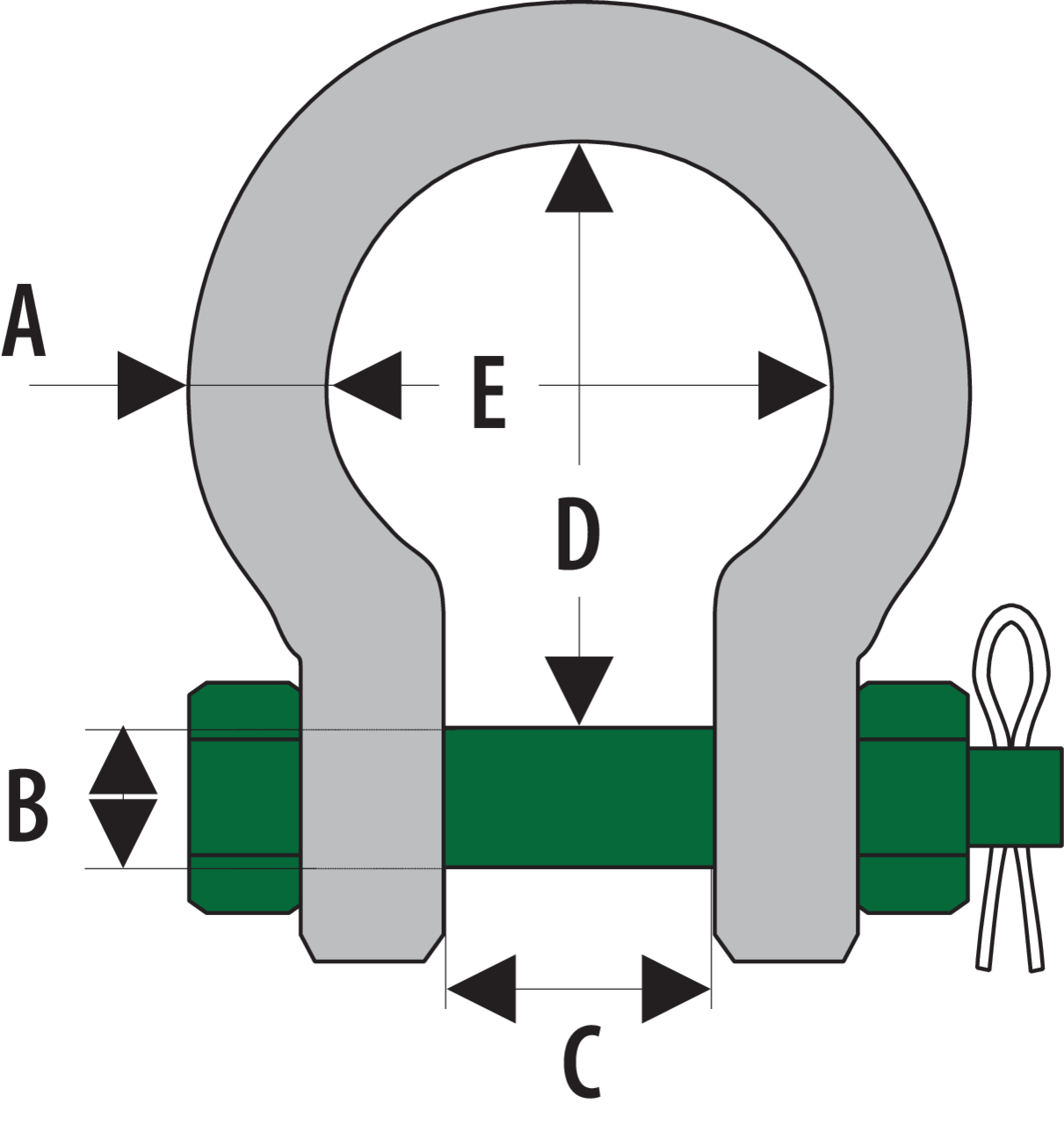

Part Code Code WLL Model A
mm
B
mm
C
mm
D
mm
E
mm
Weight
3012001 8717365013478 0,5 G4163-1/4 7 8 12 29 20 0,06
3012003 8717365013485 0,75 G4163-5/16 9 10 13,5 32 21 0,11
3012005 8717365013492 1 G4163-3/8 10 11 16,1 36 26 0,16
3012007 8717365013508 1,5 G4163-7/16 11 13 18 43 29 0,22
3012009 8717365013515 2 G4163-1/2 13,5 16 22 51 32 0,42
3012011 8717365013522 3,25 G4163-5/8 16 19 27 64 43 0,74
3012013 8717365013539 4,75 G4163-3/4 19 22 31 76 51 1,18
3012015 8717365013546 6,5 G4163-7/8 22 25 36 83 58 1,77
3012017 8717365013553 8,5 G4163-1 25 28 43 95 68 2,58
3012018 8717365013560 9,5 G4163-1.1/8 28 32 47 108 75 3,66
3012019 8717365013577 12 G4163-1.1/4 32 35 51 115 83 4,91
3012020 8717365013584 13,5 G4163-1.3/8 35 38 57 133 92 6,54
3012021 8717365013591 17 G4163-1.1/2 38 42 60 146 99 8,19
3012023 8717365013607 25 G4163-1.3/4 45 50 74 178 126 14,22
3012025 8717365022975 35 G4163-2 50 57 83 197 138 19,85
3012027 8717365258657 42,5 G4163-2.1/4 57 65 95 222 160 28,33
3012029 8717365022982 55 G4163-2.1/2 65 70 105 260 180 39,6
