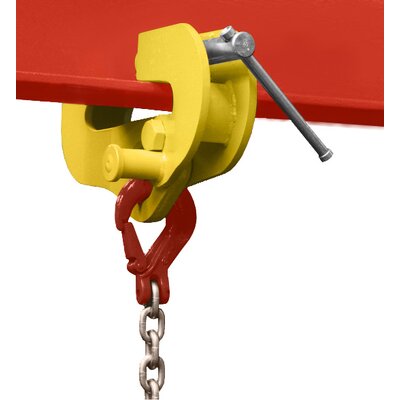

Adjustable beam clamps for rail profiles.

Properties

  • Fitted with a special catch to prevent beams from displacement.
  • With fixed suspension eyes allowing loads at any angles.

Application:

  • To be use as a semi-permanent suspension point at angle beams.
  • Marking: According to standard, CE-marked
  • Standard: EN 13157, EN 12100
    Select a row from the table below, then click the add to quote button

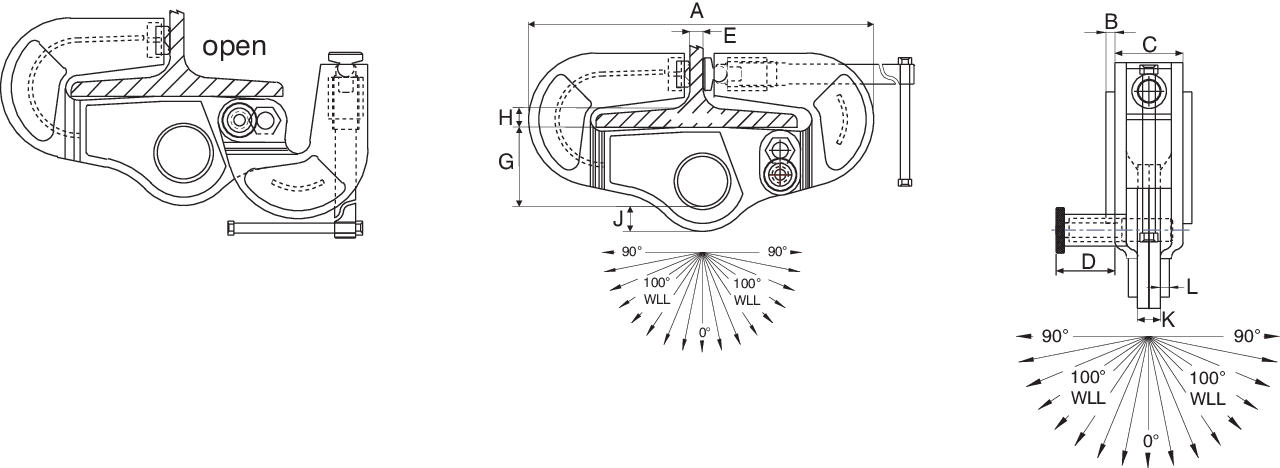

    Part Code Code WLL Beam width
    mm
    Model A
    mm
    B
    mm
    C
    mm
    D
    mm
    E
    mm
    G
    mm
    H
    mm
    J
    mm
    Weight
    3507007 8717365016974 3 125-204 USC3A 387 - 70 48 32 100 25,4 28 13,5
    3507009 8717365016981 4 125-305 USC4 518 10 70 48 32 100 25,4 28 23,5
    3507011 8717365016998 5 125-305 USC5 524 10 75 48 32 120 25,4 38 28,5
