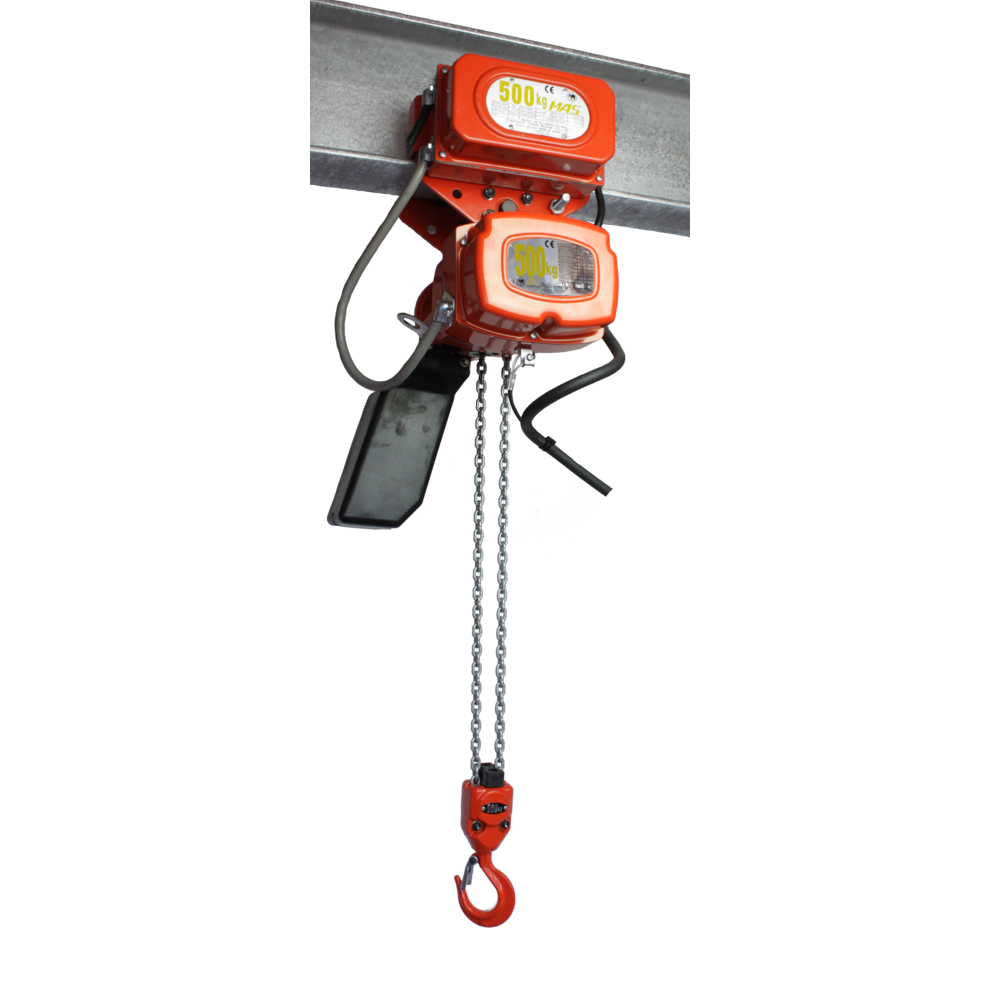

Elephant ALCMS Electric chain hoist combined with trolley 400V


The Elephant ALCMS 400 V electric chain hoists are compact and assembled with an electric trolley. Wide availability due to the high duty cycle in combination with a high hoisting speed.


  • Slip clutch against overload.
  • Self-locking brake that holds the load at any desired height.
  • In case of overload, the hooks will gradually bend and do not suddenly break off.
  • Galvanized load chain, class DAT (Grade 8).

Technical specification chain hoist

  • Insulation class E.
  • FEM 9.511 motor: 2m.
  • Power supply 400VAC - 50Hz.
  • Protection class IP54.

Technical specification trolley

  • Travel speed trolley 10 m / min
  • Trolley flange width 75-125 mm.
  • Protection class IP54
  • Motor power 0.4 kW
  • Operating voltage 400V - 50Hz

Standard delivery

  • 3 m lifting height (maximum distance between top and bottom hook).
  • 1.8 m control cable.
  • 24V pendant control station.
  • 4 m power cable.
  • Plastic chain bucket up to 6 m chain, from 6 m chain bag.
  • Included electric trolley.


  • Other hoisting and operating height is also possible.
  • Larger chain bag > 3 m.
  • Marking: According to standard, CE-marked
  • Standard: EN 12100, EN 14492, EN 818-7
