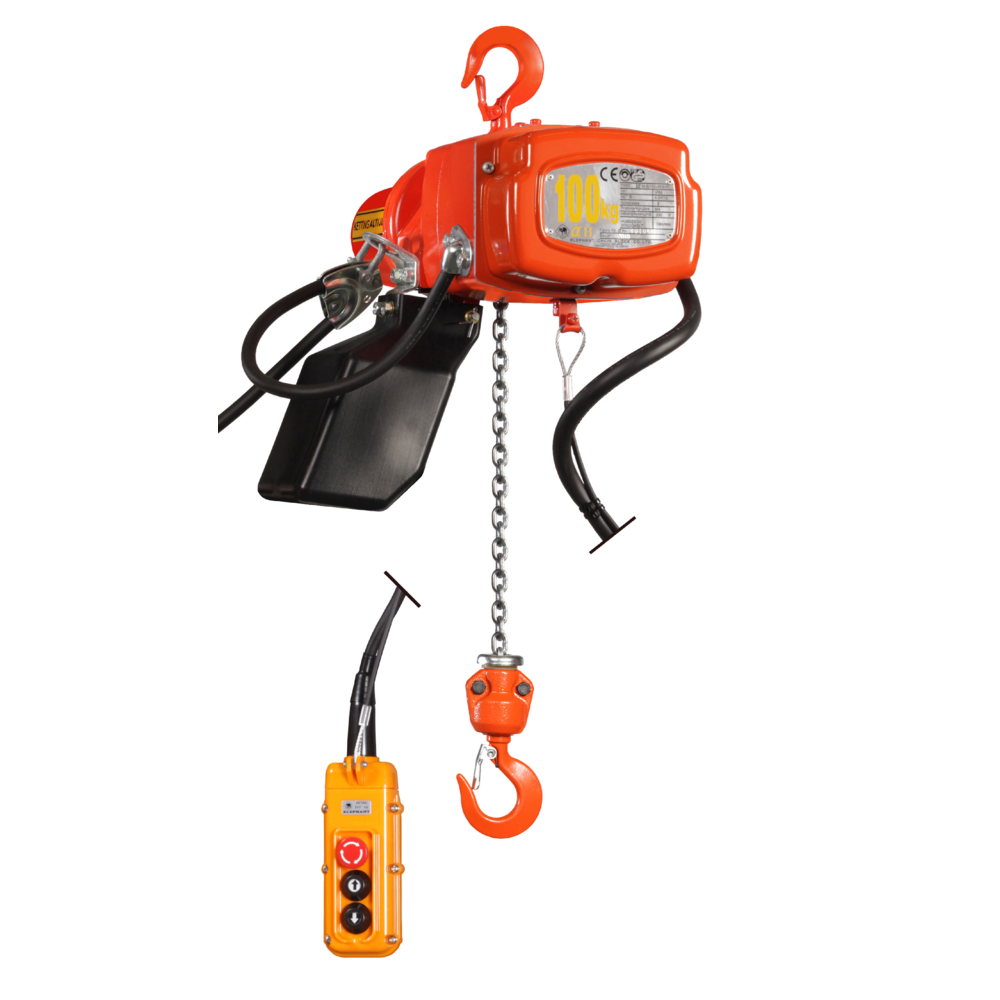

Alpha 400 V electric chain hoist

The Rema® Alpha 400 V electric chain hoists are compact and very low in weight (aluminium housing). Can be used in many situations due to high duty cycle in combination with a high lifting speed.

Properties

  • Slip clutch against overload.
  • Self-locking brake that holds the load at any desir

Show more

REMA

The Rema® Alpha 400 V electric chain hoists are compact and very low in weight (aluminium housing). Can be used in many situations due to high duty cycle in combination with a high lifting speed.

Properties

  • Slip clutch against overload.
  • Self-locking brake that holds the load at any desired height.
  • In case of overload, the hooks will gradually bend and do not suddenly break off.
  • Galvanized load chain, class DAT (Grade 8).

Technical specification:

  • Insulation class E.
  • FEM 9.511 motor: 2m.
  • Power supply 400VAC.
  • Protection class IP54.
  • Control power supply 24VAC.

Standard delivery

  • 3 m lifting height (maximum distance between top and bottom hook).
  • 1.8 m control cable, direct control.
  • Limit switches top and lowest hook positions.
  • 24V pendant control station.
  • 4 m power cable.
  • Plastic chain bucket up to 6 m chain, from 6 m chain plastic bag.
  • Trolley not included.

Option

  • Other hoisting and operating height is also possible.
  • Larger chain container > 3 m.
  • Push trolley.
  • Marking: CE-marked
