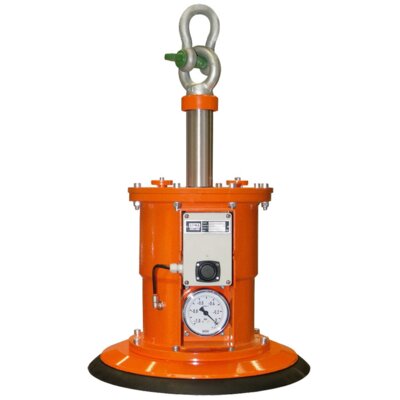

REMA VHM mechanical vacuum lifters are ideal for use in places where there is no energy source.

Properties

  • No energy source required.
  • Easy and quick installation.
  • Ergonomic control by one operator.
  • Low maintenance.
  • TÜV certified.

Safety

  • Vacuum protection against release.
  • Acoustic signal in case of pressure loss with 2 x 9 V batteries (not rechargeable).
  • Pressure gauge and vacuum control.
  • Green and red LED for "safe operation".
  • Minimum load 3 kg.

Option

  • Safety bar to esure there is always enough distance between man and machine.

IMPORTANT!

  • Always check on the material specifications and dimensions (L x W x D) of the sheet or workpiece to be lifted.
  • Marking: According to standard, CE-marked
  • Standard: EN 12100, EN 13155
Select a row from the table below, then click the add to quote button

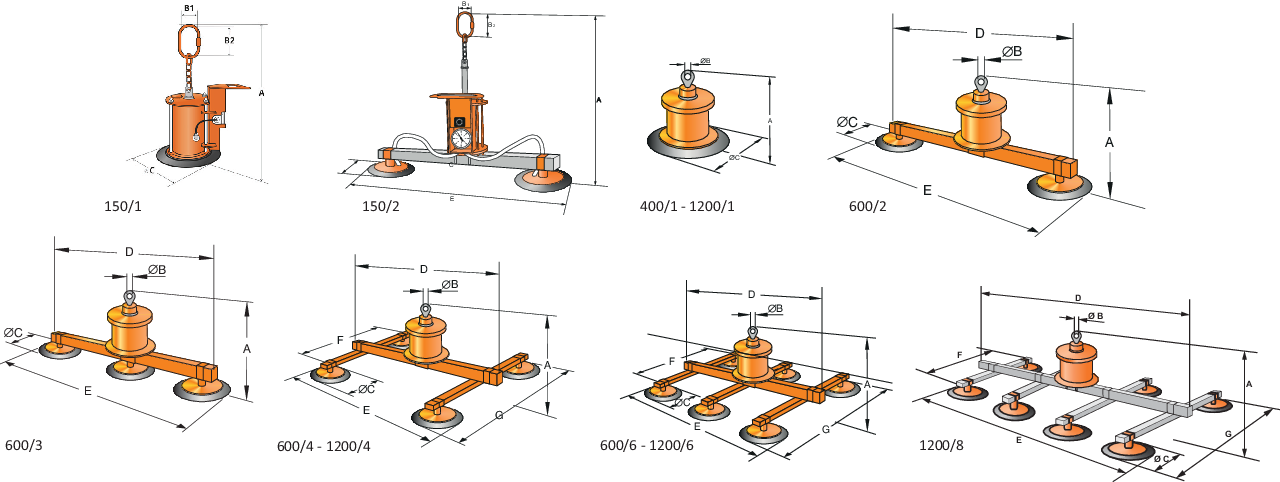

Part Code Code WLL Model Suction pads 1000 x 2000 mm
D=mm
1250 x 2500 mm
D=mm
1500 x 3000 mm
D=mm
A min
mm
A max
mm
B
mm
C
mm
D
mm
E min
mm
E max
mm
F
mm
G min
mm
G max
mm
Weight
3665000 8717365114359 0,1 VHM-100/1 1 >5 - - 495 580 60x110 230 - - - - - - 17
3665001 8717365023637 0,4 VHM-400/1 1 >5 - - 440 580 50 400 - - - - - - 46
3665002 8717365149948 0,15 VHM-150/2 2 >3 >5 - 610 750 50 230 1 910 470 1 160 - - - 26
3665003 8717365024276 0,6 VHM-600/2 2 > 1 > 1.5 > 4 610 750 50 400 1 910 860 2 210 - - - 83
3665005 8717365024283 0,6 VHM-600/3 3 > 1 > 1 > 3 620 810 50 400 1 910 1 250 2 210 - - - 96
3665007 8717365024290 0,6 VHM-600/4 4 > 1 > 1 > 2 690 880 50 340 1 910 740 2 140 1 480 630 1 740 110
3665008 8717365025747 0,6 VHM-600/6 6 > 1 > 1 > 1 690 880 50 280 1 910 900 2 080 1 480 570 1 680 136
3665009 8717365024771 1,2 VHM-1200/4 4 > 1 > 1 > 2 800 1 010 60 410 1 910 950 2 210 1 200 850 1 500 188
3665010 8717365114373 1,2 VHM-1200/1 1 >5 - - 544 754 60 770 - - - - - - 130
3665011 8717365024788 1,2 VHM-1200/6 6 > 1 > 1 > 2 800 1 010 60 410 1 910 1 250 2 210 1 200 850 1 500 228
3665013 8717365114366 1,2 VHM-1200/8 8 > 1 > 1 > 2 800 1 010 60 410 1 910 1 250 2 210 1 200 850 1 500 266
