Suitable for various profiles, with both a straight and an inclined flange.


Properties

  • Suitable for flat or bevel flange
  • Adjustable flange width by adding or removing rings.
  • Solid steel wheels, bearing of maintenance-free ball bearings.
  • Short construction height in combination with REMA Select 200 OD hoist 0.5 / 1.0 / 2.0T, by link that replaces the upper hook.
  • Wheel rupture supports and anti-surge protection ensure optimum safety.
  • 211 type, standard version.
  • 211BF type, wide flange version.
  • Marking: According to standard, CE-marked
  • Standard: EN 12100, EN 13157
Select a row from the table below, then click the add to quote button

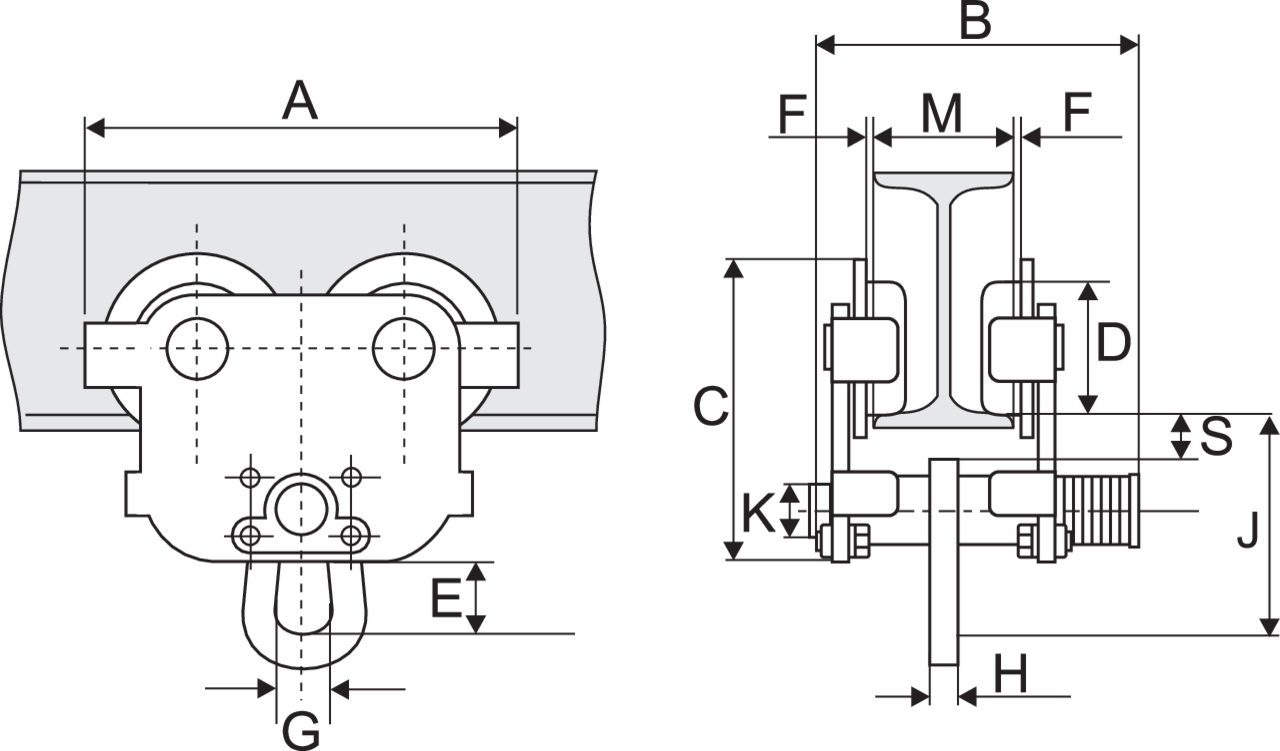

Part Code Code WLL
kg
Model Flange width
mm
Min. curve radius
mm
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
J
mm
K
mm
S
mm
Weight
kg
0924000 8717365260261 250 211-0.25-50/152 50/152 800 188 208 137 50 29 1,5~3 28 6 104 20 27 4,6
0924001 8717365260278 500 211-0.5-50/135 50/135 800 205 198 150 55 30 1,5~3 28 8 11 28 27 6,8
0924101 8717365261947 500 211BF-0.5-130/215 130/215 800 205 278 150 55 30 1,5~3 28 8 111 28 27 6,8
0924102 8717365261954 500 211BF-0.5-215/300 215/300 800 205 363 150 55 30 1,5~3 28 8 111 28 27 6,8
0924003 8717365260285 1 000 211-1.0-55/140 55/140 1 000 242 211 174 68 30 1,5~3 32 10 118 32 28 11,2
0924201 8717365261961 1 000 211BF-1.0-140/215 140/215 1 000 242 286 174 68 30 1,5~3 32 10 118 32 28 11,2
0924202 8717365261978 1 000 211BF-1.0-215/300 215/300 1 000 242 371 174 68 30 1,5~3 32 10 118 32 28 11,2
0924005 8717365260292 2 000 211-2.0-65/155 65/155 1 100 270 238 194 80 49 1,5~3 40 12 147 36 27 16,9
0924301 8717365261985 2 000 211BF-2.0-150/230 150/230 1 100 270 313 194 80 49 1,5~3 40 12 147 36 27 16,9
0924302 8717365261992 2 000 211BF-2.0-230/300 230/300 1 100 270 383 194 80 49 1,5~3 40 12 147 36 27 16,9
0924007 8717365260308 3 000 211-3.0-90/180 90/180 1 300 325 246 234 100 60 1,5~3 49 14 177 44 29 28,6
0924401 8717365262005 3 000 211BF-3.0-160/230 160/230 1 300 325 316 234 100 60 1,5~3 49 14 177 44 29 28,6
0924402 8717365262012 3 000 211BF-3.0-230/300 230/300 1 300 325 386 234 100 60 1,5~3 49 14 177 44 29 28,6
0924009 8717365260315 5 000 211-5.0-90/180 90/180 1 500 370 280 267 110 79 1,5~3 59 16 219 55 29 44,8
0924501 8717365262029 5 000 211BF-5.0-180/230 180/230 1 500 370 330 267 110 79 1,5~3 59 16 219 55 29 44,8
0924502 8717365262036 5 000 211BF-5.0-230/300 230/300 1 500 370 330 267 110 79 1,5~3 59 16 219 55 29 44,8
